Angle Bracket Fastnener

Click the product name or part number below to request a quote.

Angle Bracket Speed Nuts combine the conventional Angle Bracket with the Speed Nut principle of spring tension fastening to reduce the number of parts, speed assembly and provide structural strength. They are available in a wide variety of shapes and sizes and are applied in all industry from rugged construction to delicate electronics. Made from high quality heat-treated spring steel, they provide long life, they can be reused, and resist vibration loosening, even under the severest conditions such as aircraft applications.

The assembly of Angle Bracket Speed Nuts can be accomplished in several ways depending upon the nature of the assembly or the manufacturing facilities. They can be riveted, screwed, welded, latched, snapped or twist locked into blind locations. They provide reliable fastening points at any desirable position on the panel, chassis, frame, bulk-head, etc.
Filter:

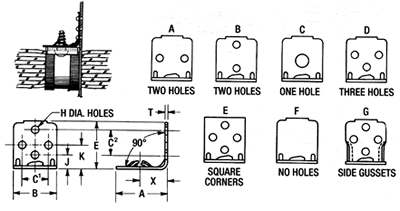

  Product Name  Screw or Hole Size  Design Variation  Length (A)  Width (B)  Height (E)
C19185-6Z
C19185-6Z
C19185-6Z
6B  0.45  0.31  0.39  Add to Quote

Tinnerman® Angle Bracket Fasteners
C8706-832
Tinnerman® Angle Bracket Fasteners
11902  0.45  0.31  0.39  Add to Quote

Tinnerman® Angle Bracket Fasteners
C71731-8Z
Tinnerman® Angle Bracket Fasteners
8B  0.745  0.625  0.745  Add to Quote

Tinnerman® Angle Bracket Fasteners
C6264-8Z
Tinnerman® Angle Bracket Fasteners
8B  Std.  0.74  0.63  0.74  Add to Quote

Tinnerman® Angle Bracket Fasteners
C15344-10A
Tinnerman® Angle Bracket Fasteners
10A  C|E  0.85  0.5  0.8  Add to Quote

Displaying 1 to 5 (of 5 products) Result Pages:  1
