SB 6.0-86 WHITE

[2485]

SB 6.0-86 WHITE

Specifications:
Color:		White
Description:		SB 6.0-86
Max. Thickness [inches]:		0.25
Max. Thickness [mm]:		6.4
Mounting Hole Diameter [inches]:		6
Mounting Hole Diameter [mm]:		152.4

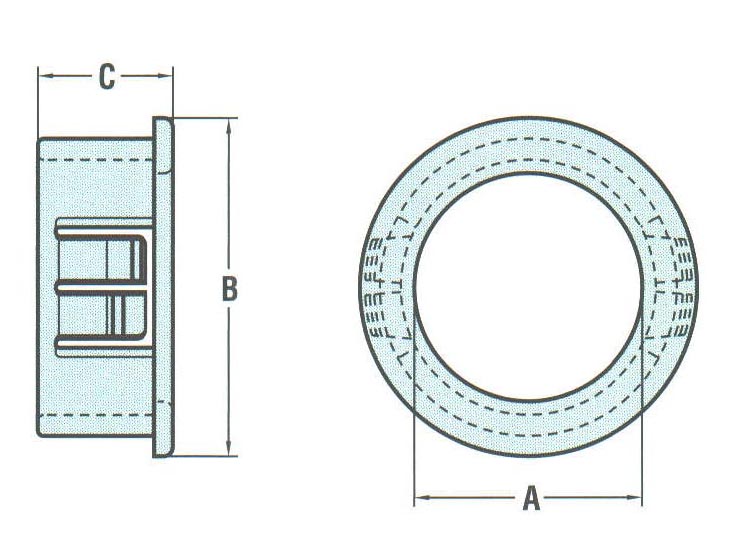

Inside Diameter - A [inches]:		5.375
Inside Diameter - A [mm]:		139.2
Head Diameter - B [inches]:		6.219
Head Diameter - B [mm]:		157.9
Overall Height - C [inches]:		0.74
Overall Height - C [mm]:		18.8
Material:		6/6 Nylon
Certifications:		Recognized under the Component Program of Underwriters' Laboratories, File #E-15331 Certified by Canadian Standards Association, File #LR-8919
Material Temperature Index:		125ºC - Maximum temperature on the part shall not exceed 105ºC

Product Images:

Click to enlarge

	Quantity Required:
