SB 437-5 WHITE

[2044]

SB 437-5 WHITE
Specifications:
Color:White
Description:SB 437-5
Max. Thickness [inches]:0.125
Max. Thickness [mm]:3.2
Mounting Hole Diameter [inches]:0.437
Mounting Hole Diameter [mm]:11.1

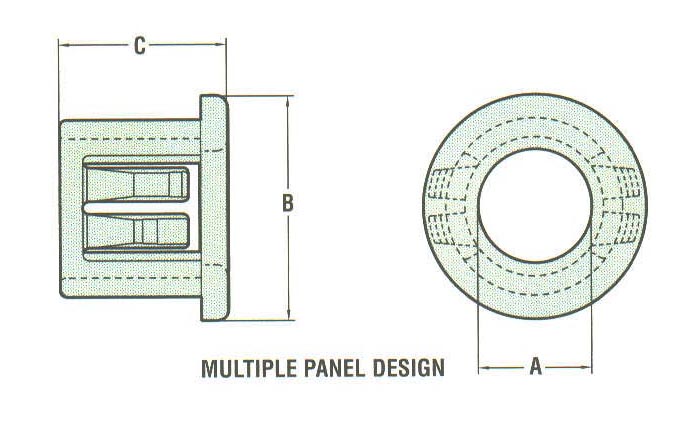

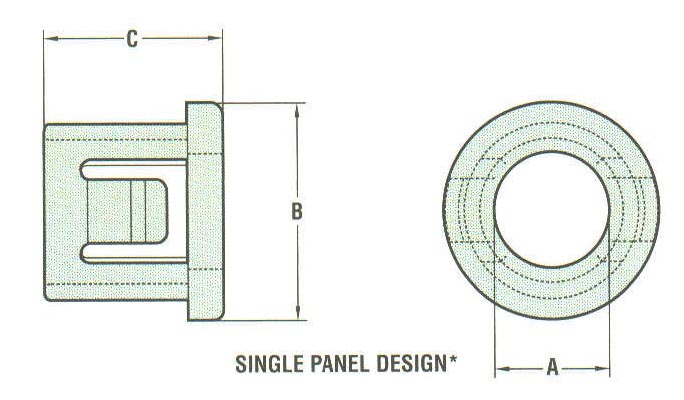

Inside Diameter - A [inches]:0.312
Inside Diameter - A [mm]:7.9
Head Diameter - B [inches]:0.531
Head Diameter - B [mm]:13.5
Overall Height - C [inches]:0.406
Overall Height - C [mm]:10.3
Material:6/6 Nylon
Certifications:Recognized under the Component Program of Underwriters' Laboratories, File #E-15331
Certified by Canadian Standards Association, File #LR-8919
Material Temperature Index:125ºC - Maximum temperature on the part shall not exceed 105ºC
Product Images:

  Quantity Required:
