Home » Liquid Tight Flexible Conduit & Fittings » Quick Twist Fittings » Sweep NPT Threaded Fittings


Sweep NPT Threaded Fittings

Click the product name or part number below to request a quote.

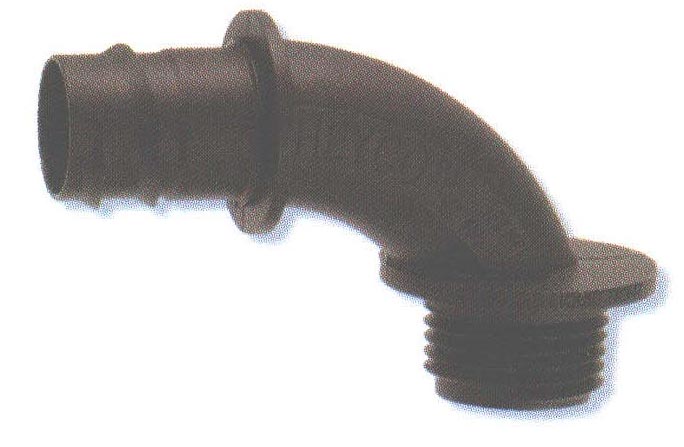

Sweep NPT Threaded Fittings
Click to enlarge
Sweep-NPT Threaded Cost Saving Fittings For use with Heyco-Flex Conduit and Tubing
  • Snap-in Connectors are UL approved for use with Heyco-Flex II tubing. NPT-threaded connectors are UL approved for use with Heyco-Flex I conduit.
  • Low cost electrical connector in three sizes (3/8?, 1/2?, 3/4?).
  • One piece solution for smooth internal surfaces for easier wire routing, protection, and installation around corner angles.
  • All nylon construction is resistant to salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification and testing.
  • Easy, permanent assembly: the installer twists" the Tubing over the Connector ferrule, until the Tubing "clicks" into place. It’s that easy!
  • No tools needed for installation.
  • Unique locking fingers accommodate various chassis thicknesses.
  • Suitable for a wide array of electrical applications :
    - Commercial and Industrial HVAC Systems
    - Motorized Equipment
    - Enclosed Power Sources
    - Garage Door Openers
    - Major Appliances
Filter:
  Product Name  Color  Conduit/Tubing Trade Size  Description  Thread Size  Max. O. A. Height - B [inches]
8502
 HFC 3/8-NPT-90-TWIST BLACK
 Black  3/8  HFC 3/8-NPT-90-twist  3/8-NPT  1.754  Add to Quote
8507
 HFC 1/2-NPT-90-TWIST BLACK
 Black  1/2  HFC 1/2-NPT-90-twist  1/2-NPT  1.754  Add to Quote
8512
 HFC 3/4-NPT-90-TWIST BLACK
 Black  3/4  HFC 3/4-NPT-90-twist  3/4-NPT  2.105  Add to Quote
8503
 HFC 3/8-NPT-90-TWIST GRAY
 Gray  3/8  HFC 3/8-NPT-90-twist  3/8-NPT  1.754  Add to Quote
8508
 HFC 1/2-NPT-90-TWIST GRAY
 Gray  1/2  HFC 1/2-NPT-90-twist  1/2-NPT  1.754  Add to Quote
8513
 HFC 3/4-NPT-90-TWIST GRAY
 Gray  3/4  HFC 3/4-NPT-90-twist  3/4-NPT  2.105  Add to Quote
Displaying 1 to 6 (of 6 products) Result Pages:  1
