Sweep Snap-In Fittings

Click the product name or part number below to request a quote.

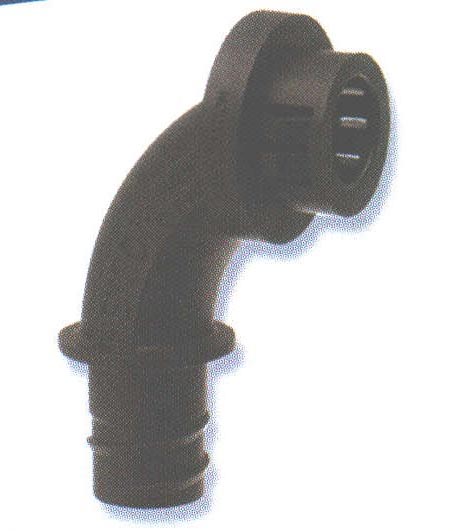

Sweep Snap-In Cost Saving Fittings For use with Heyco-Flex Conduit and Tubing
  • Snap-in Connectors are UL approved for use with Heyco-Flex II tubing. NPT-threaded connectors are UL approved for use with Heyco-Flex conduit.
  • Low cost electrical connector in three sizes (3/8, 1/2", 3/4").
  • One piece solution for smooth internal surfaces for easier wire routing, protection, and installation around corner angles.
  • All nylon construction is resistant to salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification and testing.
  • Easy, permanent assembly: the installer "twists" the Tubing over the Connector ferrule, until the Tubing "clicks" into place. It’s that easy!
  • No tools needed for installation.
  • Unique locking fingers accommodate various chassis thicknesses.
  • Suitable for a wide array of electrical applications :
    - Commercial and Industrial HVAC Systems
    - Motorized Equipment
    - Enclosed Power Sources
    - Garage Door Openers
    - Major Appliances
Filter:
  Product Name  Color  Conduit/Tubing Trade Size  Description  Mounting Hole Dia. - A [inches]  Mounting Hole Dia. - A [mm]
8500
HFC 3/8-S-90-TWIST BLACK
Black  3/8  HFC 3/8-S-90-twist  0.875  22.2  Add to Quote

8505
HFC 1/2-S-90-TWIST BLACK
Black  1/2  HFC 1/2-S-90-twist  0.875  22.2  Add to Quote

8510
HFC 3/4-S-90-TWIST BLACK
Black  3/4  HFC 3/4-S-90-twist  1.093  27.8  Add to Quote

8501
HFC 3/8-S-90-TWIST GRAY
Gray  3/8  HFC 3/8-S-90-twist  0.875  22.2  Add to Quote

8506
HFC 1/2-S-90-TWIST GRAY
Gray  1/2  HFC 1/2-S-90-twist  0.875  22.2  Add to Quote

8511
HFC 3/4-S-90-TWIST GRAY
Gray  3/4  HFC 3/4-S-90-twist  1.093  27.8  Add to Quote

Displaying 1 to 6 (of 6 products) Result Pages:  1
