Straight Snap-In Fittings

Click the product name or part number below to request a quote.

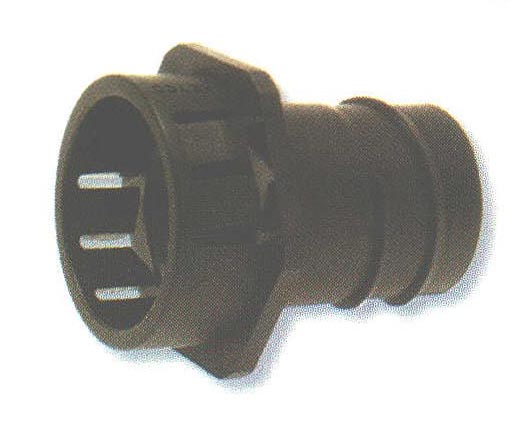

Straight Snap-In Cost Saving Fittings For use with Heyco-Flex Conduit and Tubing
  • Snap-in Connectors are UL approved for use with Heyco-Flex II tubing. NPT-threaded connectors are UL approved for use with Heyco-Flex; I conduit.
  • Low cost electrical connector in four sizes (1/4, 3/8", 1/2", 3/4").
  • One-piece solution with smooth internal surfaces provides for easier wire routing, protection, and installation.
  • All nylon construction is resistant to salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification and testing.
  • Easy, permanent assembly: the installer “twists” the tubing over the connector ferrule, until the tubing “clicks” into place. It’s that easy!
  • No tools needed for installation.
  • Unique locking fingers accommodate various chassis thicknesses.
  • Suitable for a wide array of electrical applications:
    - Commercial and Industrial HVAC Systems
    - Motorized Equipment
    - Enclosed Power Sources
    - Garage Door Openers
    - Major Appliances
  • Also available : Black and gray finishing collars to neaten rough cut tubing ends (not available in 1/4").
Recognized under the Component Program of Underwriters’ Laboratories File #E121095."
Filter:
  Product Name  Color  Conduit/Tubing Trade Size  Description  Mounting Hole Dia. - A [inches]  Mounting Hole Dia. - A [mm]
8515
HFC 1/4-S-TWIST BLACK
Black  41278  HFC 1/4-S-twist  0.54  13.7  Add to Quote

8485
HFC 3/8-S-TWIST BLACK
Black  41341  HFC 3/8-S-twist  0.875  22.2  Add to Quote

8490
HFC 1/2-S-TWIST BLACK
Black  41276  HFC 1/2-S-twist  0.875  22.2  Add to Quote

8495
HFC 3/4-S-TWIST BLACK
Black  41337  HFC 3/4-S-twist  1.093  27.8  Add to Quote

8516
HFC 1/4-S-TWIST GRAY
Gray  41278  HFC 1/4-S-twist  0.54  13.7  Add to Quote

8486
HFC 3/8-S-TWIST GRAY
Gray  41341  HFC 3/8-S-twist  0.875  22.2  Add to Quote

8491
HFC 1/2-S-TWIST GRAY
Gray  41276  HFC 1/2-S-twist  0.875  22.2  Add to Quote

8496
HFC 3/4-S-TWIST GRAY
Gray  41337  HFC 3/4-S-twist  1.093  27.8  Add to Quote

Displaying 1 to 8 (of 8 products) Result Pages:  1
