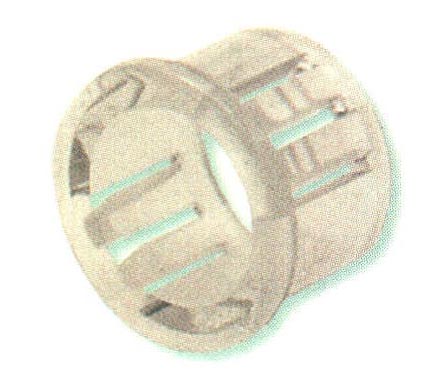

Window Plugs

Click the product name or part number below to request a quote.

  • Molded of transparent polycarbonate for internal viewing or light transmission.
  • Sixteen sizes for use in 3/16 (4.7 mm) to 2" (50.8 mm) diameter holes.
  • Locks firmly into panel up to 1/8" (3.2 mm) thick.
  • Snaps into mounting holes with fingertip pressure–no tools required.
  • Flammability Rating 94V-2.
  • Available in a variety of tints besides clear.
Locking fingers in fractional increments up to the maximum panel thickness."
Filter:
  Product Name  Description  Max. Thickness [inches]  Max. Thickness [mm]  Mounting Hole Diameter [inches]  Mounting Hole Diameter [mm]
1300
WP 187 CLEAR
WP-187  0.062  1.6  0.187  4.7  Add to Quote

1301
WP 250 CLEAR
WP-250  0.062  1.6  0.25  6.4  Add to Quote

1302
WP 312 CLEAR
WP-312  0.062  1.6  0.312  7.9  Add to Quote

1303
WP 375 CLEAR
WP-375  0.125  3.2  0.375  9.5  Add to Quote

1304
WP 437 CLEAR
WP-437  0.125  3.2  0.437  11.1  Add to Quote

1305
WP 500 CLEAR
WP-500  0.125  3.2  0.5  12.7  Add to Quote

1307
WP 625 CLEAR
WP-625  0.125  3.2  0.625  15.9  Add to Quote

1309
WP 750 CLEAR
WP-750  0.125  3.2  0.75  19.1  Add to Quote

1311
WP 875 CLEAR
WP-875  0.125  3.2  0.875  22.2  Add to Quote

1312
WP 1000 CLEAR
WP-1000  0.125  3.2  25.4  Add to Quote

1313
WP 1093 CLEAR
WP-1093  0.125  3.2  1.093 - 1.125  27.8 - 28.6  Add to Quote

1315
1315
WP-1187  0.125  3.2  1.187  30.1  Add to Quote

1314
WP 1375 CLEAR
WP-1375  0.125  3.2  1.375  34.9  Add to Quote

1316
WP 1500 CLEAR
WP-1500  0.125  3.2  1.5  38.1  Add to Quote

1318
WP 1750 CLEAR
WP-1750  0.125  3.2  1.75  44.4  Add to Quote

1319
WP 2000 CLEAR
WP-2000  0.125  3.2  50.8  Add to Quote

Displaying 1 to 16 (of 16 products) Result Pages:  1
