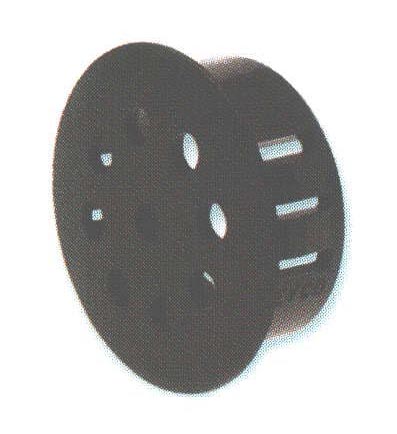

Vent Plugs

Click the product name or part number below to request a quote.

  • Permits the passage of air for ventilation and heat dissipation.
  • Convex, matte finish head tapers to a thin edge.
  • Sixteen sizes for use in 1/2 (12.7 mm) to 4" (101.6 mm) diameter holes.
  • VP-500 through VP-875 have 3/32" (2.4 mm) diameter vent holes. All other sizes have 1/8" (3.2 mm) diameter vents.
  • Locks firmly into panel up to 1/4" (6.4 mm) thick.
  • Quick and easy installation with only fingertip pressure.
Locking fingers in fractional increments up to the maximum chassis thickness.
Approximate Head Thickness : .063" (1.6 mm)."
Filter:
  Product Name  Color  Description  No. of Holes  Max. Thickness [inches]  Max. Thickness [mm]
2637
VP 500 BLACK
Black  VP-500  0.125  3.2  Add to Quote

2657
VP 625 BLACK
Black  VP-625  0.125  3.2  Add to Quote

2677
VP 750 BLACK
Black  VP-750  0.125  3.2  Add to Quote

2697
VP 875 BLACK
Black  VP-875  0.125  3.2  Add to Quote

2707
VP 1000 BLACK
Black  VP-1000  0.125  3.2  Add to Quote

2726
VP 1093 BLACK
Black  VP-1093  0.125  3.2  Add to Quote

2736
VP 1187 BLACK
Black  VP-1187  10  0.125  3.2  Add to Quote

2743
VP 1250 BLACK
Black  VP-1250  10  0.125  3.2  Add to Quote

2797
SVP 1250-4 BLACK
Black  SVP-1250  0.125  3.2  Add to Quote

2756
VP 1375 BLACK
Black  VP-1375  11  0.125  3.2  Add to Quote

2766
VP 1500 BLACK
Black  VP-1500  13  0.125  3.2  Add to Quote

2776
VP 1750 BLACK
Black  VP-1750  13  0.125  3.2  Add to Quote

2786
VP 2000 BLACK
Black  VP-2000  19  0.125  3.2  Add to Quote

2793
VP 2.5 BLACK
Black  VP-2.5  19  0.25  6.4  Add to Quote

2458
VP 3.0 BLACK
Black  VP-3.0  26  0.25  6.4  Add to Quote

2467
VP 3.5 BLACK
Black  VP-3.5  38  0.25  6.4  Add to Quote

2476
VP 4.0 BLACK
Black  VP-4.0  48  0.25  6.4  Add to Quote

2638
VP 500 WHITE
White  VP-500  0.125  3.2  Add to Quote

2658
VP 625 WHITE
White  VP-625  0.125  3.2  Add to Quote

2678
VP 750 WHITE
White  VP-750  0.125  3.2  Add to Quote

Displaying 1 to 20 (of 33 products) Result Pages:  1  2  [Next >>]
