Home » Bushings & Plugs » Plugs » Thick Panel Dome Plugs

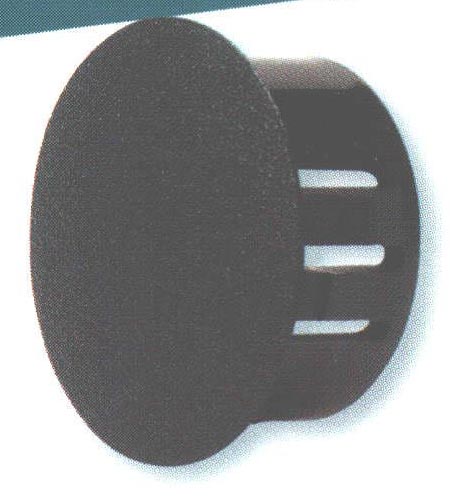

Thick Panel Dome Plugs

Click the product name or part number below to request a quote.

  • Closes unneeded panel holes and electrical knock-outs.
  • A convex, matte finish head that tapers to a thin edge.
  • Locking fingers snap" into holes with fingertip pressure for quick and easy installation.
  • Withstands a push back force of 35 pounds.
  • Available in 12 sizes for use in 1/2" (12.7 mm) to 2" (50.8 mm) diameter holes.
Locking fingers in fractional increments up to the maximum panel thickness. Approximate Head Thickness : .063" (1.6 mm). Thickness may vary."
Filter:
  Product Name  Color  Description  Max. Thickness [inches]  Max. Thickness [mm]  Mounting Hole Diameter [inches]
3004
DPT 500 BLACK
Black  DPT-500  0.25  6.4  0.5  Add to Quote

3006
DPT 625 BLACK
Black  DPT-625  0.25  6.4  0.625  Add to Quote

3008
DPT 750 BLACK
Black  DPT-750  0.25  6.4  0.75  Add to Quote

3044
DPT 875 BLACK
Black  DPT-875  0.25  6.4  0.875  Add to Quote

3046
DPT 1000 BLACK
Black  DPT-1000  0.25  6.4  Add to Quote

3018
DPT 1093 BLACK
Black  DPT-1093  0.25  6.4  1.093 - 1.125  Add to Quote

3100
DPT 1187 BLACK
Black  DPT-1187  0.25  6.4  1.187  Add to Quote

3102
DPT 1250 BLACK
Black  DPT-1250  0.25  6.4  1.25  Add to Quote

3106
DPT 1375 BLACK
Black  DPT-1375  0.25  6.4  1.375  Add to Quote

3048
DPT 1500 BLACK
Black  DPT-1500  0.25  6.4  1.5  Add to Quote

3027
DPT 1750 BLACK
Black  DPT-1750  0.25  6.4  1.75  Add to Quote

3050
DPT 2000 BLACK
Black  DPT-2000  0.25  6.4  Add to Quote

3005
DPT 500 WHITE
White  DPT-500  0.25  6.4  0.5  Add to Quote

3007
DPT 625 WHITE
White  DPT-625  0.25  6.4  0.625  Add to Quote

3009
DPT 750 WHITE
White  DPT-750  0.25  6.4  0.75  Add to Quote

3045
DPT 875 WHITE
White  DPT-875  0.25  6.4  0.875  Add to Quote

3047
DPT 1000 WHITE
White  DPT-1000  0.25  6.4  Add to Quote

3019
DPT 1093 WHITE
White  DPT-1093  0.25  6.4  1.093 - 1.125  Add to Quote

3101
DPT 1187 WHITE
White  DPT-1187  0.25  6.4  1.187  Add to Quote

3103
DPT 1250 WHITE
White  DPT-1250  0.25  6.4  1.25  Add to Quote

Displaying 1 to 20 (of 24 products) Result Pages:  1  2  [Next >>]
