Home » Bushings & Plugs » Plugs » Shorty Plugs

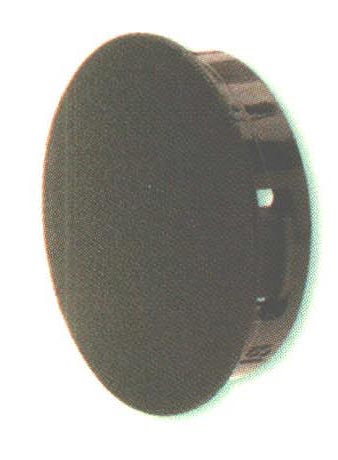

Shorty Plugs

Click the product name or part number below to request a quote.

  • Limited protrusion (1/8 or 3.2 mm) inside the panel.
  • Eight sizes for use in "odd 32nd" diameter holes.
  • Eight sizes for use in popular "even 32nd" diameter holes.
  • Sixteen sizes total for mounting holes from 7/32" (5.5 mm) to 1" (25.4 mm).
  • Locks firmly in panel up to 1/16" (1.6 mm) thick.
  • Quick and easy installation.
Approximate Head Thickness : .063" (1.6 mm)."
Filter:
  Product Name  Color  Description  Max. Thickness [inches]  Max. Thickness [mm]  Mounting Hole Diameter [inches]
1654
SP 218 BLACK
Black  SP-218  0.062  1.6  0.218  Add to Quote

1660
SP 281 BLACK
Black  SP-281  0.062  1.6  0.281  Add to Quote

1678
SP 312 BLACK
Black  SP-312  0.062  1.6  0.312  Add to Quote

1663
SP 343 BLACK
Black  SP-343  0.062  1.6  0.343  Add to Quote

1681
SP 375 BLACK
Black  SP-375  0.062  1.6  0.375  Add to Quote

1666
SP 406 BLACK
Black  SP-406  0.062  1.6  0.406  Add to Quote

1684
SP 437 BLACK
Black  SP-437  0.062  1.6  0.437  Add to Quote

1669
SP 468 BLACK
Black  SP-468  0.062  1.6  0.468  Add to Quote

1687
SP 500 BLACK
Black  SP-500  0.062  1.6  0.5  Add to Quote

1672
SP 531 BLACK
Black  SP-531  0.062  1.6  0.531  Add to Quote

1675
SP 593 BLACK
Black  SP-593  0.062  1.6  0.593  Add to Quote

1690
SP 625 BLACK
Black  SP-625  0.062  1.6  0.625  Add to Quote

1693
SP 750 BLACK
Black  SP-750  0.062  1.6  0.75  Add to Quote

1696
SP 781 BLACK
Black  SP-781  0.062  1.6  0.781  Add to Quote

1699
SP 875 BLACK
Black  SP-875  0.062  1.6  0.875  Add to Quote

1702
SP 1000 BLACK
Black  SP-1000  0.062  1.6  Add to Quote

1655
SP 218 WHITE
White  SP-218  0.062  1.6  0.218  Add to Quote

1661
SP 281 WHITE
White  SP-281  0.062  1.6  0.281  Add to Quote

1679
SP 312 WHITE
White  SP-312  0.062  1.6  0.312  Add to Quote

1664
SP 343 WHITE
White  SP-343  0.062  1.6  0.343  Add to Quote

Displaying 1 to 20 (of 32 products) Result Pages:  1  2  [Next >>]
