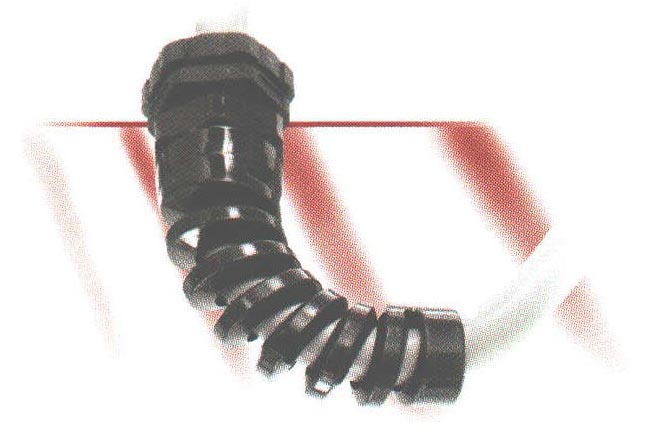

Metric Liquid Tight Pigtail Cordgrips

Click the product name or part number below to request a quote.

For Flexible Cords. Metric Hub - For use in clearance or threaded holes
US Patent No. 5405172
Foreign Patents Pending
  • Widest range of cable and/or thread sizes available. Includes six threads for cables ranging from .065 (1.7 mm) to .709" (18.0 mm).
  • "Ratchet design" of sealing nut assembly provide superior antivibration protection and ensures a firm grip on this cable.
  • Flexible "Pigtail" extender prevents sharp bends and extends cable life. Integral "Sealing Ring" ensures a superior seal at mounting locations every time.
  • Acme threads on body prevent skipping and speed installation.
  • We recommend using the cordgrip with the smallest maximum diameter that will fit your application.
  • All nylon construction with a Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Suitable for NEMA type 4 and 6 enclosures.
  • Working Temperatures : -22°F to (-30°C) to -212°F (100°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • PG hub threads are steel conduit threads per DIN 40430. For DIN 40430.
  • Standard flammability rating 94V-2.
  • Locknuts are included. For nylon or steel locknut specifications or to order locknuts separately.
Filter:
  Product Name  Color  Description  Min. Dia. [inches]  Min. Dia. [mm]  Max. Dia. [inches]
M4396
FLEX RLTCG M12 BLKw/M9130 NUT
Black  FLEX RLTCG M12  0.065  1.7  0.22  Add to Quote

M4398
FLEX LTCG M12 BLACKw/M9130 NUT
Black  FLEX LTCG M12  0.115  2.9  0.25  Add to Quote

M4400
FLEX RLTCG M16 BLKw/M9132 NUT
Black  FLEX RLTCG M16  0.065  1.7  0.187  Add to Quote

M4402
FLEX LTCG M16 BLACKw/M9132 NUT
Black  FLEX LTCG M16  0.105  2.7  0.312  Add to Quote

M4404
FLEX RLTCG M20 BLKw/M9134 NUT
Black  FLEX RLTCG M20  0.095  2.4  0.26  Add to Quote

M4406
FLEX LTCG M20 BLACKw/M9134 NUT
Black  FLEX LTCG M20  0.17  4.3  0.45  Add to Quote

M4408
FLEX RLTCG M25 BLKw/M9136 NUT
Black  FLEX RLTCG M25  0.25  6.4  0.485  Add to Quote

M4410
FLEX LTCG M25 BLACKw/M9136 NUT
Black  FLEX LTCG M25  0.485  12.3  0.709  Add to Quote

M4397
FLEX RLTCG M12 GRAYw/M9131 NUT
Gray  FLEX RLTCG M12  0.065  1.7  0.22  Add to Quote

M4399
FLEX LTCG M12 GRAYw/M9131 NUT
Gray  FLEX LTCG M12  0.115  2.9  0.25  Add to Quote

M4401
FLEX RLTCG M16 GRAYw/M9133 NUT
Gray  FLEX RLTCG M16  0.065  1.7  0.187  Add to Quote

M4403
FLEX LTCG M16 GRAYw/M9133 NUT
Gray  FLEX LTCG M16  0.105  2.7  0.312  Add to Quote

M4405
FLEX RLTCG M20 GRAYw/M9135 NUT
Gray  FLEX RLTCG M20  0.095  2.4  0.26  Add to Quote

M4407
FLEX LTCG M20 GRAYw/M9135 NUT
Gray  FLEX LTCG M20  0.17  4.3  0.45  Add to Quote

M4409
FLEX RLTCG M25 GRAYw/M9137 NUT
Gray  FLEX RLTCG M25  0.25  6.4  0.485  Add to Quote

M4411
FLEX LTCG M25 GRAYw/M9137 NUT
Gray  FLEX LTCG M25  0.485  12.3  0.709  Add to Quote

Displaying 1 to 16 (of 16 products) Result Pages:  1
