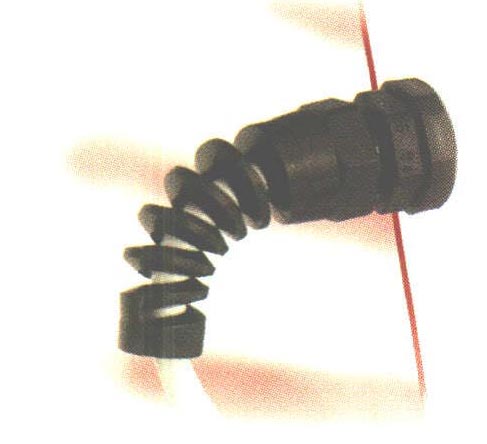

Liquid Tight Pigtail Cordgrips - US Patent No. 5405172

Click the product name or part number below to request a quote.

For Flexible Cords. PG HUBS - For use in clearance or threaded holes. For a wider range of materials, cable sizes, and threads see page 1-10 Heyco-Tite Cordgrips
Foreign Patents
  • Ten sizes for cable, diameters ranging from .064 (1.6 mm) to .709" (18.0 mm).
  • We recommend using the fitting with the smallest maximum diameter that will fit your application.
  • Acme threads on body prevent skipping and speed installation. All nylon construction with TPE gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Flexible "Pigtail" extender prevents sharp bends and extends cable life. PG hub threads are steel conduit threads per DIN 40430.
  • Working temperatures : -22°F (-30°C) to 212°F (100°C).
  • Protection class IP 68 per DIN 40050.
  • Suitable for NEMA type 4 and 6 enclosures.
  • Locknuts are included. For nylon or steel locknut specifications or to order locknuts separately.
Filter:
  Product Name  Color  Description  Min. Dia. [inches]  Min. Dia. [mm]  Max. Dia. [inches]
3464
FLEX RLTF 7 BLKw/3165 NUT
Black  FLEX RLTF 7  0.064  1.6  0.21  Add to Quote

3237
FLEX LTF 7 BLACKw/3165 NUT
Black  FLEX LTF 7  0.114  2.9  0.25  Add to Quote

3466
FLEX RLTF 9 BLACKW/3167 NUT
Black  FLEX RLTF 9  0.069  1.8  0.187  Add to Quote

3240
FLEX LTF 9 BLACKw/3167 NUT
Black  FLEX LTF 9  0.181  4.6  0.312  Add to Quote

3468
FLEX RLTF 11 BLKw/3169 NUT
Black  FLEX RLTF 11  0.069  1.8  0.26  Add to Quote

3243
FLEX LTF 11 BLKw/3169 NUT
Black  FLEX LTF 11  0.23  5.8  0.395  Add to Quote

3246
FLEX LTF 13 BLACK w/3171 NUT
Black  FLEX LTF 13.5  0.17  4.3  0.45  Add to Quote

3249
FLEX LTF 16 BLACKw/3173 NUT
Black  FLEX LTF 16  0.23  5.8  0.546  Add to Quote

3478
FLEX RLTF 21 BLACK W/3175 NUT
Black  FLEX RLTF 21  0.25  6.4  0.485  Add to Quote

3245
FLEX LTF 21 BLACKw/3175 NUT
Black  FLEX LTF 21  0.45  11.4  0.709  Add to Quote

3465
FLEX RLTF 7 GRAY w/3166 NUT
Gray  FLEX RLTF 7  0.064  1.6  0.21  Add to Quote

3238
FLEX LTF 7 GRAYw/3166 NUT
Gray  FLEX LTF 7  0.114  2.9  0.25  Add to Quote

3467
FLEX RLTF 9 GRAYw/3168 NUT
Gray  FLEX RLTF 9  0.069  1.8  0.187  Add to Quote

3241
FLEX LTF 9 GRAYw/3168 NUT
Gray  FLEX LTF 9  0.181  4.6  0.312  Add to Quote

3469
FLEX RLTF 11 GRAYw/3170 NUT
Gray  FLEX RLTF 11  0.069  1.8  0.26  Add to Quote

3244
FLEX LTF 11 GRAYw/3170 NUT
Gray  FLEX LTF 11  0.23  5.8  0.395  Add to Quote

3247
FLEX LTF 13 GRAYw/3172 NUT
Gray  FLEX LTF 13.5  0.17  4.3  0.45  Add to Quote

3250
FLEX LTF 16 GRAYw/3174 NUT
Gray  FLEX LTF 16  0.23  5.8  0.546  Add to Quote

3479
FLEX RLTF 21 GRAY W/3176 NUT
Gray  FLEX RLTF 21  0.25  6.4  0.485  Add to Quote

3248
FLEX LTF 21 GRAY W/3176 NUT
Gray  FLEX LTF 21  0.45  11.4  0.709  Add to Quote

Displaying 1 to 20 (of 20 products) Result Pages:  1
