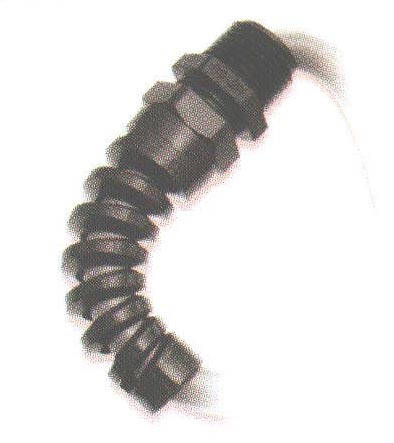

Liquid Tight Pigtail Cordgrips - US Patent No. 5405172

Click the product name or part number below to request a quote.

For Flexible Cords. NPT HUBS - For use in clearance or threaded holes. For a wider range of materials, cable sizes, and threads. Heyco TITE" Cordgrips
Foreign Patents
  • Six sizes for cable, tubing, etc. with diameters ranging from .069" (1.8 mm) to .709" (18.0 mm).
  • Acme threads on body prevent skipping and speed installation.
  • Flexible “Pigtail” extender prevents sharp bends and extends cable life.
  • We recommend using the fitting with the smallest maximum diameter that will fit your application.
  • All nylon construction with TPE or Buna N Sealing Gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Working temperatures : -22°F (-30°C) to 212°F (100°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Suitable for NEMA type 4 and 6 enclosures.
  • Locknuts are NOT included. To order nylon or steel locknuts separately,
Filter:
  Product Name  Color  Description  Min. Dia. [inches]  Min. Dia. [mm]  Max. Dia. [inches]
3474
FLEX RLTF 3/8 NPT BLACK NO NUT
Black  FLEX RLTF 3/8  0.069  1.8  0.187  Add to Quote

3254
FLEX LTF 3/8 NPT BLACK NO NUT
Black  FLEX LTF 3/8  0.181  4.6  0.312  Add to Quote

3251
FLEX LTF 1/2 NPT BLACK NO NUT
Black  FLEX LTF 1/2  0.17  4.3  0.47  Add to Quote

3266
FLEX LLTF 1/2 NPT BLACK NO NUT
Black  FLEX LLTF 1/2  0.23  5.8  0.546  Add to Quote

3462
FLEX RLTF 3/4 NPT BLACK-NO NUT
Black  FLEX RLTF 3/4  0.25  6.4  0.485  Add to Quote

3239
FLEX LTF 3/4 NPT BLACK NO NUT
Black  FLEX LTF 3/4  0.45  11.4  0.709  Add to Quote

3475
FLEX RLTF 3/8 NPT GRAY NO NUT
Gray  FLEX RLTF 3/8  0.069  1.8  0.187  Add to Quote

3255
FLEX LTF 3/8 NPT GRAY NO NUT
Gray  FLEX LTF 3/8  0.181  4.6  0.312  Add to Quote

3252
FLEX LTF 1/2 NPT GRAY NO NUT
Gray  FLEX LTF 1/2  0.17  4.3  0.47  Add to Quote

3267
FLEX LLTF 1/2 NPT GRAY NO NUT
Gray  FLEX LLTF 1/2  0.23  5.8  0.546  Add to Quote

3463
FLEX RLTF 3/4 NPT GRAY-NO NUT
Gray  FLEX RLTF 3/4  0.25  6.4  0.485  Add to Quote

3242
FLEX LTF 3/4 NPT GRAY NO NUT
Gray  FLEX LTF 3/4  0.45  11.4  0.709  Add to Quote

Displaying 1 to 12 (of 12 products) Result Pages:  1
