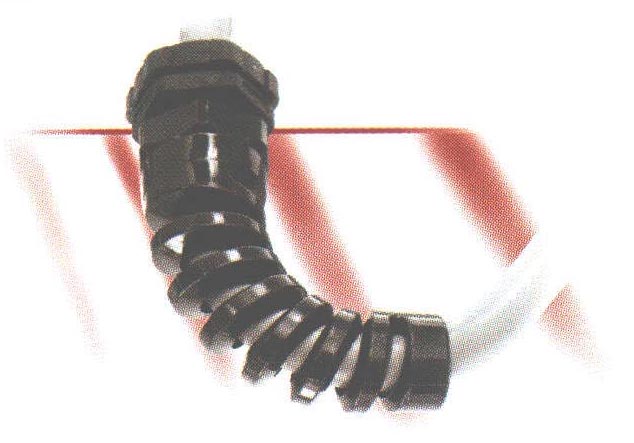

Heyco TITE" Liquid Tight Pigtail Cordgrips"

Click the product name or part number below to request a quote.

For Flexible Cords. PG Hubs - For use in either clearance or threaded holes
US and Patents No. 5405172
Foreign Patents
  • Widest range of cable and/or thread sizes available. Includes six threads for cables ranging from .065 (1.7 mm) to .689" (17.5 mm).
  • We recommend using the fitting with the smallest maximum diameter that will fit your application.
  • "Ratchet design" of sealing nut assembly provides superior antivibration protection and ensures a firm grip on this cable.
  • Integral "Sealing Ring" ensures a superior seal at mounting locations every time.
  • All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Acme threads on body prevent skipping and speed installation.
  • Flexible "Pigtail" extender prevents sharp bends and extends cable life.
  • PG hub threads are steel conduit threads per DIN 40430.
  • Suitable for NEMA 6P enclosures.
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Working temperatures : -22°F (-30°C) to 212°F (100°C).
  • Standard flammability rating 94V-2.
  • Locknuts are included. For nylon or steel locknut specifications or to order locknuts separately.
Filter:
  Product Name  Color  Description  Min. Dia. [inches]  Min. Dia. [mm]  Max. Dia. [inches]
M3464
FLEX RLTCG PG-7 BLACKw/3165
Black  RLTCG PG 7 FLEX  0.065  1.7  0.22  Add to Quote

M3237
FLEX LTCG PG-7 BLACKw/3165 NUT
Black  LTCG PG 7 FLEX  0.115  2.9  0.25  Add to Quote

M3466
FLEX RLTCG PG-9 BLKw/3167 NUT
Black  RLCG PG 9 FLEX  0.065  1.7  0.187  Add to Quote

M3240
FLEX LTCG PG-9 BLACKw/3167 NUT
Black  LTCG PG 9 FLEX  0.105  2.7  0.312  Add to Quote

M3468
FLEX RLTCG PG-11 BLKw/3169 NUT
Black  RLTCG PG 11 FLEX  0.069  1.8  0.25  Add to Quote

M3243
FLEX LTCG PG-11 BLKw/3169 NUT
Black  LTCG PG 11 FLEX  0.23  5.8  0.395  Add to Quote

M4526
FLX RLTCG PG-13 BLKw/3171 NUT
Black  RLTCG PG 13 FLEX  0.095  2.4  0.26  Add to Quote

M3246
FLEX LTCG PG-13,5 BLACKw/3171
Black  LTCG PG 13 FLEX  0.17  4.3  0.45  Add to Quote

M4528
FLEX RLTCG PG-16 BLKw/3173 NUT
Black  RLTCG PG 16 FLEX  0.18  4.6  0.44  Add to Quote

M3249
FLEX LTCG PG-16 BLKw/3173 NUT
Black  LTCG PG 16 FLEX  0.23  5.8  0.546  Add to Quote

M3478
FLEX RLTCG PG-21 BLKw/3175 NUT
Black  RLTCG PG 21 FLEX  0.25  6.4  0.485  Add to Quote

M3245
FLEX LTCG PG-21 BLKw/3175 NUT
Black  LTCG PG 21 FLEX  0.485  12.3  0.709  Add to Quote

M3465
FLEX RLTCG PG-7 GRAYw/3166 NUT
Gray  RLTCG PG 7 FLEX  0.065  1.7  0.22  Add to Quote

M3238
FLEX LTCG PG-7 GRAYw/3166 NUT
Gray  LTCG PG 7 FLEX  0.115  2.9  0.25  Add to Quote

M3467
FLEX RLTCG PG-9 GRAYw/3168 NUT
Gray  RLCG PG 9 FLEX  0.065  1.7  0.187  Add to Quote

M3241
FLEX LTCG PG-9 GRAYw/3168 NUT
Gray  LTCG PG 9 FLEX  0.105  2.7  0.312  Add to Quote

M3469
FLEX RLTCG PG-11 GRAYw/3170NUT
Gray  RLTCG PG 11 FLEX  0.069  1.8  0.25  Add to Quote

M3244
FLEX LTCG PG-11 GRAYw/3170 NUT
Gray  LTCG PG 11 FLEX  0.23  5.8  0.395  Add to Quote

M4527
FLX RLTCG PG13 GRAYw/3172NUT
Gray  RLTCG PG 13 FLEX  0.095  2.4  0.26  Add to Quote

M3247
FLEX LTCG PG-13,5 GRAYw/3172
Gray  LTCG PG 13 FLEX  0.17  4.3  0.45  Add to Quote

Displaying 1 to 20 (of 24 products) Result Pages:  1  2  [Next >>]
