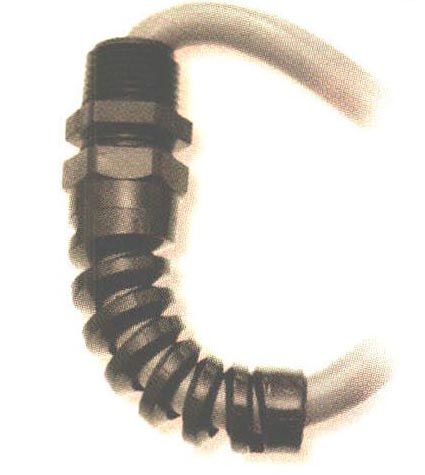

Heyco TITE" Liquid Tight Pigtail Cordgrips"

Click the product name or part number below to request a quote.

For Flexible Cords. NPT - For use in clearance or threaded holes
US and Foreign Patents Pending
  • Widest range of cable and/or thread sizes available. Includes six threads for cables ranging from .065 (1.7 mm) to .709" (18.0 mm).
  • “Ratchet design” of sealing nut assembly provides superior antivibration protection and ensures a firm grip on the cable.
  • Integral “Sealing Ring” ensures a superior seal at mounting location every time.
  • We recommend using the cordgrip with the smallest maximum diameter that will fit your application.
  • Acme threads on body prevent skipping and speed installation.
  • All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Suitable for NEMA 6P enclosures.
  • Working Temperatures : -22°F to (-30°C) to -212°F (100°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Standard flammability rating 94V-2.
  • Locknuts are NOT included. To order nylon or steel locknuts separately.
Filter:
  Product Name  Color  Description  Min. Dia. [inches]  Min. Dia. [mm]  Max. Dia. [inches]
M4536
FLEX RLTCG 1/4 NPT BLK-NO NUT
Black  RLTCG 1/4 Flex  0.065  1.7  0.22  Add to Quote

M4538
FLEX LTCG 1/4 NPT BLACK-NO NUT
Black  LTCG 1/4 Flex  0.115  2.9  0.25  Add to Quote

M3474
FLEX RLTCG 3/8 NPT BLK NO NUT
Black  RLTCG 3/8 Flex  0.065  1.7  0.187  Add to Quote

M3254
FLEX LTCG 3/8 NPT BLACK NO NUT
Black  LTCG 3/8 Flex  0.105  2.7  0.312  Add to Quote

M4540
FLEX RLTCG 1/2 NPT BLK-NO NUT
Black  RLTCG 1/2 Flex  0.095  2.4  0.26  Add to Quote

M3251
FLEX LTCG 1/2 NPT BLACK NO NUT
Black  LTCG 1/2 Flex  0.17  4.3  0.45  Add to Quote

M3462
FLEX RLTCG 3/4 NPT BLK-NO NUT
Black  RLTCG 3/4 Flex  0.25  6.4  0.485  Add to Quote

M3239
FLEX LTCG 3/4 NPT BLACK NO NUT
Black  LTCG 3/4 Flex  0.485  12.3  0.709  Add to Quote

M4537
FLEX RLTCG 1/4 NPT GRAY-NO NUT
Gray  RLTCG 1/4 Flex  0.065  1.7  0.22  Add to Quote

M4539
FLEX LTCG 1/4 NPT GRAY-NO NUT
Gray  LTCG 1/4 Flex  0.115  2.9  0.25  Add to Quote

M3475
FLEX RLTCG 3/8 NPT GRAY NO NUT
Gray  RLTCG 3/8 Flex  0.065  1.7  0.187  Add to Quote

M3255
FLEX LTCG 3/8 NPT GRAY NO NUT
Gray  LTCG 3/8 Flex  0.105  2.7  0.312  Add to Quote

M4541
FLEX RLTCG 1/2 NPT GRAY NO NUT
Gray  RLTCG 1/2 Flex  0.095  2.4  0.26  Add to Quote

M3252
FLEX LTCG 1/2 NPT GRAY NO NUT
Gray  LTCG 1/2 Flex  0.17  4.3  0.45  Add to Quote

M3463
FLEX RLTCG 3/4 NPT GRAY-NO NUT
Gray  RLTCG 3/4 Flex  0.25  6.4  0.485  Add to Quote

M3242
FLEX LTCG 3/4 NPT GRAY NO NUT
Gray  LTCG 3/4 Flex  0.485  12.3  0.709  Add to Quote

Displaying 1 to 16 (of 16 products) Result Pages:  1
