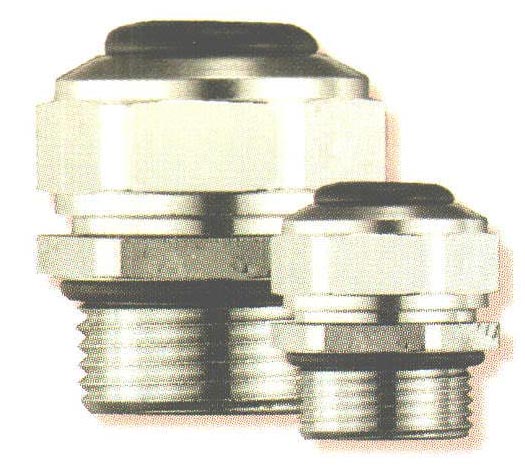

Metallic Cordgrips with PG Threads

Click the product name or part number below to request a quote.

Nickel-Plated Brass Construction for Superior Protection of Flexible Cables
  • Nickel-plated finish over brass provides excellent corrosion resistance and durability.
  • Sizes PG 7 through PG 42 accommodate various cable diameters.
  • Long PG threads provide additional threads for easy locknut assembly.
  • Working temperature range is -40°C up to +100°C.
  • Sealing gland is molded in Thermoplastic Polymer Elastomer Material.
  • Protection class IP 68.
  • Locknuts sold separately.
  • We recommend using the smallest cordgrip that accommodates your cable size.
Filter:
  Product Name  Min. Cable Diameter [inches]  Min. Cable Diameter [mm]  Max. Cable Diameter [inches]  Max. Cable Diameter [mm]  Thread Size
4530
BRASS CG PG7-50
0.138  3.5  0.197  PG 7  Add to Quote

4531
BRASS CG PG7-65
0.197  0.256  6.5  PG 7  Add to Quote

4532
BRASS CG PG7-80
0.256  6.5  0.315  PG 7  Add to Quote

4533
BRASS CG PG9-45
0.138  3.5  0.177  4.5  PG 9  Add to Quote

4534
BRASS CG PG9-60
0.177  4.5  0.236  PG 9  Add to Quote

4535
BRASS CG PG9-80
0.236  0.315  PG 9  Add to Quote

4536
BRASS CG PG9-105
0.315  0.413  10.5  PG 9  Add to Quote

4537
BRASS CG PG11-55
0.157  0.216  5.5  PG 11  Add to Quote

4538
BRASS CG PG11-85
0.216  5.5  0.335  8.5  PG 11  Add to Quote

4539
BRASS CG PG11-120
0.335  8.5  0.472  12  PG 11  Add to Quote

4540
BRASS CG PG13-80
0.236  0.315  PG 13.5  Add to Quote

4541
BRASS CG PG13-110
0.315  0.433  11  PG 13.5  Add to Quote

4542
BRASS CG PG13-150
0.433  11  0.59  15  PG 13.5  Add to Quote

4543
BRASS CG PG16-80
0.236  0.315  PG 16  Add to Quote

4544
BRASS CG PG16-110
0.315  0.433  11  PG 16  Add to Quote

4545
BRASS CG PG16-150
0.433  11  0.59  15  PG 16  Add to Quote

4546
BRASS CG PG21-125
0.374  9.5  0.492  12.5  PG 21  Add to Quote

4547
BRASS CG PG21-160
0.492  12.5  0.63  16  PG 21  Add to Quote

4548
BRASS CG PG21-205
0.63  16  0.807  20.5  PG 21  Add to Quote

4549
BRASS CG PG29-190
0.63  16  0.748  19  PG 29  Add to Quote

Displaying 1 to 20 (of 28 products) Result Pages:  1  2  [Next >>]
