Liquid Tight Right Angle Cordgrips - US and Foreign Patents Pending

Click the product name or part number below to request a quote.

For Flexible Cords. NPT HUBS - For use in clearance or threaded holes
  • Three sizes for cable, tubing, etc. with diameters ranging from .065 (1.7 mm) to .450" (11.4 mm).

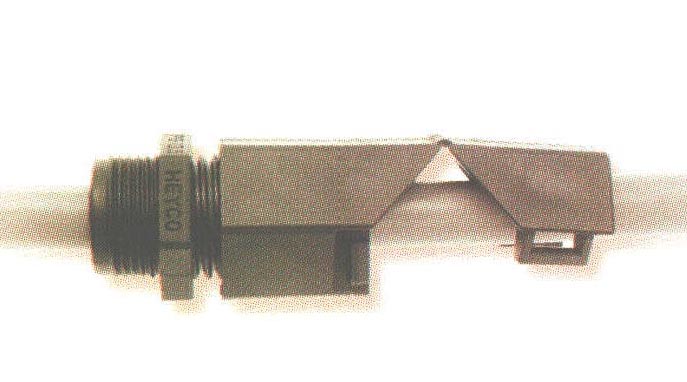

  • Each cordgrip is molded in the open position for ease of installation. After cable insertion, the fitting snaps closed, bending the cable without damage. This assembly method saves considerable time and money.
  • Part design provides liquid tight integrity even in the open position.
  • Acme threads on body prevent skipping and speed installation.
  • We recommend using the fitting with the smallest maximum diameter that will fit your application.
  • All nylon construction with TPE gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification and testing.
  • Suitable for NEMA 6P enclosures.
  • Working temperatures : 22°F (-30°C) to 212°;F (100°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Locknuts are NOT included. To order nylon or steel locknuts separately.
Filter:
  Product Name  Color  Description  Min. Dia. [inches]  Min. Dia. [mm]  Max. Dia. [inches]
M4560
RLTCG 1/4 NPT 90 BLACK-NO NUT
Black  RLTCG 1/4 90  0.065  1.7  0.22  Add to Quote

M4562
LTCG 1/4 NPT 90 BLACK-NO NUT
Black  LTCG 1/4 90  0.115  2.9  0.25  Add to Quote

M8560
RLTCG 3/8 NPT 90 BLACK-NO NUT
Black  RLTCG 3/8 90  0.069  1.8  0.187  Add to Quote

M8562
LTCG 3/8 NPT 90 BLACK-NO NUT
Black  LTCG 3/8 90  0.181  4.6  0.305  Add to Quote

M4564
RLTCG 1/2 NPT 90 BLACK-NO NUT
Black  RLTCG 1/2 90  0.095  2.4  0.26  Add to Quote

M8564
LTCG 1/2 NPT 90 BLACK-NO NUT
Black  LTCG 1/2 90  0.17  4.3  0.45  Add to Quote

M4561
RLTCG 1/4 NPT 90 GRAY-NO NUT
Gray  RLTCG 1/4 90  0.065  1.7  0.22  Add to Quote

M4563
LTCG 1/4 NPT 90 GRAY-NO NUT
Gray  LTCG 1/4 90  0.115  2.9  0.25  Add to Quote

M8561
RLTCG 3/8 NPT 90 GRAY-NO NUT
Gray  RLTCG 3/8 90  0.069  1.8  0.187  Add to Quote

M8563
LTCG 3/8 NPT 90 GRAY-NO NUT
Gray  LTCG 3/8 90  0.181  4.6  0.305  Add to Quote

M4565
RLTCG 1/2 NPT 90 GRAY-NO NUT
Gray  RLTCG 1/2 90  0.095  2.4  0.26  Add to Quote

M8565
LTCG 1/2 NPT 90 GRAY-NO NUT
Gray  LTCG 1/2 90  0.17  4.3  0.45  Add to Quote

Displaying 1 to 12 (of 12 products) Result Pages:  1
