Liquid Tight Right Angle Cordgrips

Click the product name or part number below to request a quote.

For Flexible Cords. Metric Hubs - for use in clearance or threaded holes
US and Foreign Patents Pending.
  • Six sizes for cable, tubing, etc. with diameters ranging from .065 (1.7 mm) to .45" (11.4 mm).

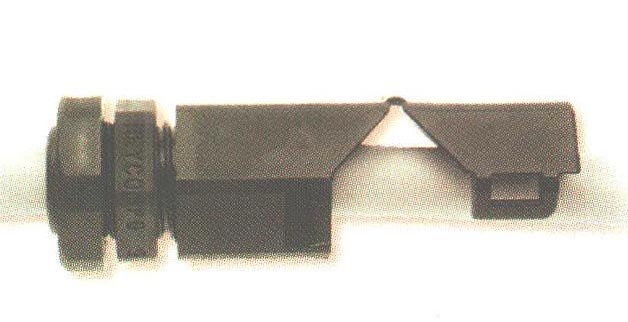

  • Each cordgrip is molded in the open position for ease of installation. After cable insertion, the cordgrip snaps closed, bending the cable without damage. This assembly method saves considerable time and money.
  • "Ratchet design" of sealing nut assembly provide superior antivibration protection and ensures a firm grip on this cable.
  • Integral "Sealing Ring" ensures a superior seal at mounting locations every time.
  • Part design provides liquid tight integrity even in the open position.
  • Acme threads on body prevent skipping and speed installation.
  • We recommend using the cordgrip with the smallest maximum diameter that will fit your application.
  • All nylon construction with Buna N gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed for UL certification or testing.
  • Suitable for NEMA 6P enclosures.
  • Working temperatures : -22°F (-30°C) to 212°F (100°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Standard flammability rating 94V-2. Locknuts are included. For nylon or steel locknut specifications or to order locknuts separately.
Filter:
  Product Name  Color  Description  Min. Dia. [inches]  Min. Dia. [mm]  Max. Dia. [inches]
M4448
RLTCG M12 90 BLACKw/M9130 NUT
Black  RLTCG M12 90  0.065  1.7  0.22  Add to Quote

M4450
LTCG M12 90 BLACKw/M9130 NUT
Black  LTCG M12 90  0.115  2.9  0.25  Add to Quote

M4452
RLTCG M16 90 BLACKw/M9132 NUT
Black  RLTCG M16 90  0.065  1.7  0.187  Add to Quote

M4454
LTCG M16 90 BLACKw/M9132 NUT
Black  LTCG M16 90  0.105  2.7  0.312  Add to Quote

M4456
RLTCG M20 90 BLACKw/M9134 NUT
Black  RLTCG M20 90  0.095  2.4  0.26  Add to Quote

M4458
LTCG M20 90 BLACKw/M9134 NUT
Black  LTCG M20 90  0.17  4.3  0.45  Add to Quote

M4449
RLTCG M12 90 GRAYw/M9131 NUT
Gray  RLTCG M12 90  0.065  1.7  0.22  Add to Quote

M4451
LTCG M12 90 GRAYw/M9131 NUT
Gray  LTCG M12 90  0.115  2.9  0.25  Add to Quote

M4453
RLTCG M16 90 GRAYw/M9133 NUT
Gray  RLTCG M16 90  0.065  1.7  0.187  Add to Quote

M4455
LTCG M16 90 GRAYw/M9133 NUT
Gray  LTCG M16 90  0.105  2.7  0.312  Add to Quote

M4457
RLTCG M20 90 GRAYw/M9135 NUT
Gray  RLTCG M20 90  0.095  2.4  0.26  Add to Quote

M4459
LTCG M20 90 GRAYw/M9135 NUT
Gray  LTCG M20 90  0.17  4.3  0.45  Add to Quote

Displaying 1 to 12 (of 12 products) Result Pages:  1
