Liquid Tight Right Angle Cordgrips

Click the product name or part number below to request a quote.

For Flexible Cords. PG HUBS - For use in either clearance or threaded holes
  • Eight sizes for cable, tubing, etc. with diameters ranging from .064 (1.6 mm) to .470" (11.9 mm).

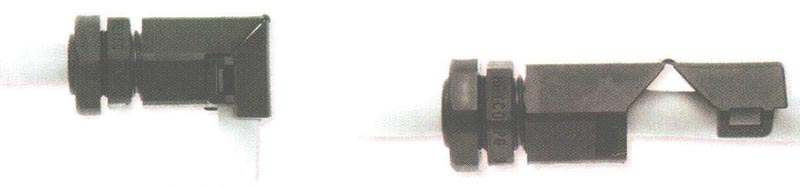

  • Each cordgrip is molded in the open position for ease of installation. After cable insertion, the cordgrip snaps closed, bending the cable without damage. This assembly method saves considerable time and money.
  • "Ratchet design" of sealing nut assembly provide superior antivibration protection and ensures a firm grip on the cable.
  • Integral "Sealing Ring" ensures a superior seal at mounting locations every time.
  • Part design provides liquid tight integrity even in the open position.
  • Acme threads on body prevent skipping and speed installation.
  • We recommend using the cordgrip with the smallest maximum diameter that will fit your application.
  • All nylon construction with Buna N gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Working temperatures : -22°F (-30°C) to 212°F (100°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Suitable for NEMA 6P enclosures.
  • Locknuts are included. For nylon or steel locknut specifications or to order locknuts separately.
Filter:
  Product Name  Color  Description  Min. Dia. [inches]  Min. Dia. [mm]  Max. Dia. [inches]
M8530
RLTCG PG-7 90 BLACKw/3165 NUT
Black  RLTCG PG-7 90  0.064  1.6  0.21  Add to Quote

M8532
LTCG PG-7 90 BLACKw/3165 NUT
Black  LTCG PG-7 90  0.114  2.9  0.25  Add to Quote

M8534
RLTCG PG-9 90 BLACKw/3167 NUT
Black  RLTCG PG-9 90  0.069  1.8  0.187  Add to Quote

M8536
LTCG PG-9 90 BLACKw/3167 NUT
Black  LTCG PG-9 90  0.181  4.6  0.305  Add to Quote

M8538
RLTCG PG-11 90 BLACKw/3169 NUT
Black  RLTCG PG-1190  0.078  0.26  Add to Quote

M8540
LTCG PG-11 90 BLACKw/3169 NUT
Black  LTCG PG-11 90  0.23  5.8  0.375  Add to Quote

M4542
RLTCG PG-13,5 90 BLKw/3171 NUT
Black  RLTCGPG-13.5 90  0.095  2.4  0.26  Add to Quote

M8542
LTCG PG-13,5 90 BLKw/3171 NUT
Black  LTCG PG-13.5 90  0.17  4.3  0.47  Add to Quote

M8531
RLTCG PG-7 90 GRAYw/3166 NUT
Black  RLTCG PG-7 90  0.064  1.6  0.21  Add to Quote

M8533
LTCG PG-7 90 GRAYw/3166 NUT
Black  LTCG PG-7 90  0.114  2.9  0.25  Add to Quote

M8535
RLTCG PG-9 90 GRAYw/3168 NUT
Black  RLTCG PG-9 90  0.069  1.8  0.187  Add to Quote

M8537
LTCG PG-9 90 GRAYw/3168 NUT
Black  LTCG PG-9 90  0.181  4.6  0.305  Add to Quote

M8539
RLTCG PG-11 90 GRAYw/3170 NUT
Black  RLTCG PG-1190  0.078  0.26  Add to Quote

M8541
LTCG PG-11 90 GRAYw/3170 NUT
Black  LTCG PG-11 90  0.23  5.8  0.375  Add to Quote

M4543
RLTCG PG-13,5 90GRAYw/3172 NUT
Black  RLTCGPG-13.5 90  0.095  2.4  0.26  Add to Quote

M8543
LTCG PG-13,5 90 GRAYW/3172 NUT
Black  LTCG PG-13.5 90  0.17  4.3  0.47  Add to Quote

Displaying 1 to 16 (of 16 products) Result Pages:  1
