Cordgrips with NPT Threads

Click the product name or part number below to request a quote.

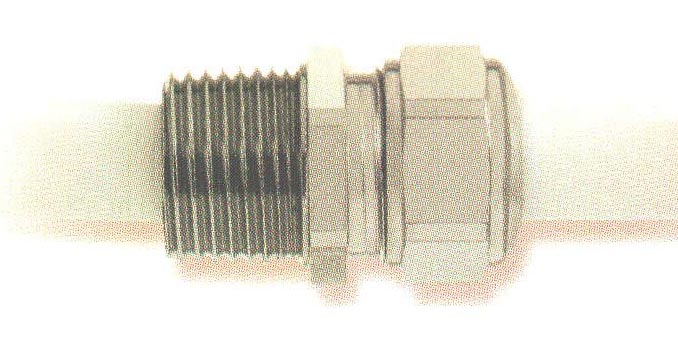

Cordgrips with NPT Threads

Click to enlarge

Nickel-Plated Brass Construction for Superior Protection of Flexible Cables

The superior finish of nickel-plated brass cordgrips provides provides excellent corrosion resistance and durability.
Sizes NPT 1/8 thru NPT 2" accommodate various cable diameters.
Long NPT threads provide additional threads for easy locknut assembly.
Working temperature range is -40°C up to +100°C.
Sealing gland is molded in Thermoplastic Polymer Elastomer Material.
Protection class IP 68.
We recommend using the smallest nickel-plated brass cordgrip available that will accommodate your cable size.

	Product Name	Min. Cable Diameter [inches]	Min. Cable Diameter [mm]	Max. Cable Diameter [inches]	Max. Cable Diameter [mm]	Thread Size
4560	BRASS CG-NPT 1/8"-040	0.118	3	0.157	4	NPT 1/8" 0.445"
4561	BRASS CG-NPT 1/8"-060	0.157	4	0.236	6	NPT 1/8" 0.445"
4562	BRASS CG-NPT 1/4"-050	0.138	3.5	0.197	5	NPT 1/4" 0.540"
4563	BRASS CG-NPT 1/4"-065	0.197	5	0.256	6.5	NPT 1/4" 0.540"
4564	BRASS CG-NPT 1/4"-080	0.256	6.5	0.315	8	NPT 1/4" 0.540"
4565	BRASS CG-NPT 3/8"-045	0.138	3.5	0.177	4.5	NPT 3/8" 0.670"
4566	BRASS CG-NPT 3/8"-060	0.177	4.5	0.236	6	NPT 3/8" 0.670"
4567	BRASS CG-NPT 3/8"-080	0.236	6	0.315	8	NPT 3/8" 0.670"
4568	BRASS CG-NPT 3/8"-105	0.315	8	0.413	10.5	NPT 3/8" 0.670"
4569	BRASS CG-NPT 1/2"-080	0.236	6	0.315	8	NPT 1/2" 0.875"
4570	BRASS CG-NPT 1/2"-110	0.315	8	0.433	11	NPT 1/2" 0.875"
4571	BRASS CG-NPT 1/2"-150	0.433	11	0.59	15	NPT 1/2" 0.875"
4572	BRASS CG-NPT 3/4"-125	0.374	9.5	0.492	12.5	NPT 3/4" 1.068"
4573	BRASS CG-NPT 3/4"-160	0.492	12.5	0.63	16	NPT 3/4" 1.068"
4574	BRASS CG-NPT 3/4"-205	0.63	16	0.807	20.5	NPT 3/4" 1.068"
4575	BRASS CG-NPT 1"-170	0.551	14	0.669	17	NPT 1" 1.375"
4576	BRASS CG-NPT 1"-210	0.669	17	0.827	21	NPT 1" 1.375"
4577	BRASS CG-NPT 1"-255	0.827	21	1.004	25.5	NPT 1" 1.375"
4578	BRASS CG-NPT 1-1/4"-240	0.787	20	0.945	24	NPT 1 1/4" 1.680"
4579	BRASS CG-NPT 1-1/4"-285	0.945	24	1.122	28.5	NPT 1 1/4" 1.680"

Displaying 1 to 20 (of 27 products)

Result Pages: 1 2 [Next >>]
