American Standard Blind Rivet IFI 114
American Standard Blind Rivet IFI 114American Standard Blind Rivet IFI 114American Standard Blind Rivet IFI 114

ECONOMICAL: GESIPA Standard Open-End blind rivets are economical to use, providing low costs and higher installation efficiency when compared to other fastening methods.

VERSATILE: American Standard blind rivets are available in three head styles; Dome, Large Flange and Countersunk to satisfy your application requirements.

SELECTION: Material choices include Aluminum Blind Rivet/Aluminum Blind Mandrel, Aluminum Blind Rivet/Steel Mandrel, Steel Blind Rivet/Steel Mandrel, Stainless Blind Rivet/Steel Mandrel and Stainless Blind Rivet/Stainless Mandrel. Special finishes such as paint, anodized or non-standard plating are available and quoted upon request.

QUALITY: GESIPA American Standard open-end blind rivets are made in accordance with IFI 114 standards for dimensional, material, mechanical and performance specifications.

Jump to Specifications:
Aluminum/Aluminum
Aluminum/Steel
Steel/Steel
Stainless/Steel
Stainless/Stainless

All dimensions in inch.
See our line of Back-up Washers and our American Rivet Nut line.

Part Number Syntax


Mandrel Material: A=Aluminum S=Steel SS=Stainless Steel
Head Styles: D=Dome L= Large Flange C=Countersunk

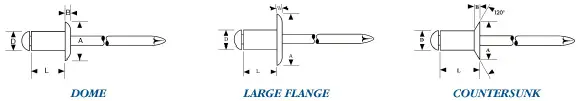

Dome - Large Flange - Countersunk

ALUMINUM RIVET/ALUMINUM MANDREL IFI 114 Grade 11
Head
Style 		Rivet Dia.
Nom. 		GESIPA
Part Number 		Grip Range
(Inches) 		Hole Size
Drill No. 		Dimensions Min. Strength (lbs.)
D B A L Shear Tensile
Dome 3/32" GAMD32A .020-.125 .097-.100

#41 		.090-.096 .032 .178-.198 .250 70 80
GAMD34A .126-.250 .375
1/8" GAMD41A .020-.062 .129-.133

#30 		.122-.128 .040 .238-.262 .212 120 150
GAMD42A .063-.125 .275
GAMD43A .126-.187 .337
GAMD44A .188-.250 .400
GAMD45A .251-.312 .462
GAMD46A .313-.375 .525
GAMD48A .376-.500 .650
5/32" GAMD52A .020-.125 .160-.164

#20 		.153-.159 .050 .296-.328 .300 190 230
GAMD53A .126-.187 .362
GAMD54A .188-.250 .425
GAMD56A .251-.375 .550
GAMD58A .376-.500 .675
3/16" GAMD62A .020-.125 .192-.196

#11 		.183-.191 .060 .356-.394 .325 260 320
GAMD64A .126-.250 .450
GAMD66A .251-.375 .575
GAMD68A .376-.500 .700
GAMD610A .501-.625 .825
GAMD612A .626-.750 .950
GAMD614A .751-.875 1.075
GAMD616A .876-1.00 1.200
1/4" GAMD84A .126-.250 .257-.261

"F" 		.246-.255 .080 .475-.525 .500 460 560
GAMD86A .251-.375 .625
GAMD88A .376-.500 .750
GAMD810A .501-.625 .875
GAMD812A .626-.750 1.000
GAMD816A .751-1.00 1.250
Large Flange 1/8" GAML42A .063-.125 .129-.133

#30 		.122-.128 .065 .360-.390 .275 120 150
GAML44A .126-.250 .400
GAML46A .251-.375 .525
3/16" GAML64A .126-.250 .192-.196

#11 		.183-.191 .092 .600-.650 .450 260 320
GAML66A .251-.375 .575
GAML68A .376-.500 .700
GAML610A .501-.625 .825
GAML612A .626-.750 .950
Countersunk 1/8" GAMC42A .092-.125 .129-.133

#30 		.122-.128 .031 .207-.233 .275 120 150
GAMC43A .126-.187 .337
GAMC44A .188-.250 .400
GAMC45A .251-.312 .462
5/32" GAMC54A .188-.250 .160-.164

#20 		.153-.159 .040 .268-.294 .425 190 230
GAMC56A .251-.375 .550
3/16" GAMC64A .188-.250 .192-.196

#11 		.183-.191 .050 .355-.361 .450 260 320

back to specifications

ALUMINUM RIVET/STEEL MANDREL IFI 114 Grade 19
Head
Style 		Rivet
Dia.
Nom. 		GESIPA
Part
Number 		Grip
Range
(Inches) 		Hole Size
Drill No. 		Dimensions Min. Strength (lbs.)
D B A L Shear Tensile
Dome 3/32" GSMD32A .020-.125 .097-.100

#41 		.090-.096 .032 .178-.198 .250 90 120
GSMD34A .126-.250 .375
1/8" GSMD41A .020-.062 .129-.133

#30 		.122-.128 .040 .238-.262 .212 170 220
GSMD42A .063-.125 .275
GSMD43A .126-.187 .337
GSMD44A .188-.250 .400
GSMD45A .251-.312 .462
GSMD46A .313-.375 .525
GSMD48A .376-.500 .650
5/32" GSMD52A .020-.125 .160-.164

#20 		.153-.159 .050 .296-.328 .300 260 350
GSMD53A .126-.187 .362
GSMD54A .188-.250 .425
GSMD56A .251-.375 .550
GSMD58A .376-.500 .675
3/16" GSMD62A .020-.125 .192-.196

#11 		.183-.191 .060 .356-.394 .325 380 500
GSMD64A .126-.250 .450
GSMD66A .251-.375 .575
GSMD68A .376-.500 .700
GSMD610A .501-.625 .825
GSMD612A .626-.750 .950
GSMD614A .751-.875 1.075
GSMD616A .876-1.00 1.200
1/4" GSMD84A .126-.250 .257-.261

"F" 		.246-.255 .080 .475-.525 .500 700 920
GSMD86A .251-.375 .625
GSMD88A .376-.500 .750
GSMD810A .501-.625 .875
GSMD812A .626-.750 1.000
GSMD816A .751-1.00 1.250
Large Flange 1/8" GSML42A .063-.125 .129-.133

#30 		.122-.128 .065 .360-.390 .275 170 220
GSML44A .126-.250 .400
GSML46A .251-.375 .525
3/16" GSML64A .126-.250 .192-.196

#11 		.183-.191 .092 .600-.650 .450 380 500
GSML66A .251-.375 .575
GSML68A .376-.500 .700
GSML610A .501-.625 .825
GSML612A .626-.750 .950
Countersunk 1/8" GSMC42A .092-.125 .129-.133

#30 		.122-.128 .031 .207-.233 .275 170 220
GSMC43A .126-.187 .337
GSMC44A .188-.250 .400
GSMC45A .251-.312 .462
5/32" GSMC54A .188-.250 .160-.164

#20 		.153-.159 .040 .268-.294 .425 260 350
GSMC56A .251-.375 .550
3/16" GSMC64A .188-.250 .192-.196

#11 		.183-.191 .050 .335-.361 .450 380 500

back to specifications

STEEL RIVET/STEEL MANDREL IFI 114 Grade 30
Head
Style 		Rivet
Dia.
Nom. 		GESIPA
Part
Number 		Grip
Range
(Inches) 		Hole Size
Drill No. 		Dimensions Min. Strength (lbs.)
D B A L Shear Tensile
Dome 3/32" GSMD32S .020-.125 .097-.100

#41 		.090-.096 .032 .178-.198 .250 130 170
GSMD34S .126-.250 .375
1/8" GSMD41S .020-.062 .129-.133

#30 		.122-.128 .040 .238-.262 .212 260 310
GSMD42S .063-.125 .275
GSMD43S .126-.187 .337
GSMD44S .188-.250 .400
GSMD45S .251-.312 .462
GSMD46S .313-.375 .525
GSMD48S .376-.500 .650
5/32" GSMD52S .020-.125 .160-.164

#20 		.153-.159 .050 .296-.328 .300 370 470
GSMD53S .126-.187 .362
GSMD54S .188-.250 .425
GSMD56S .251-.375 .550
GSMD58S .376-.500 .675
3/16" GSMD62S .020-.125 .192-.196

#11 		.183-.191 .060 .356-.394 .325 540 680
GSMD64S .126-.250 .450
GSMD66S .251-.375 .575
GSMD68S .376-.500 .700
GSMD610S .501-.625 .825
GSMD612S .626-.750 .950
GSMD614S .751-.875 1.075
GSMD616S .876-1.00 1.200
1/4" GSMD84S .126-.250 .257-.261

"F" 		.246-.255 .080 .475-.525 .500 1000 1240
GSMD86S .251-.375 .625
GSMD88S .376-.500 .750
GSMD810S .501-.625 .875
GSMD812S .626-.750 1.000
GSMD816S .751-1.00 1.250
Large Flange 1/8" GSML42S .063-.125 .129-.133

#30 		.122-.128 .065 .360-.390 .275 260 310
GSML44S .126-.250 .400
GSML46S .251-.375 .525
5/32" GSML54S .020-.250 .160-.164

#20 		.153-.159 .075 .448-.488 .425 370 470
3/16" GSML64S .126-.250 .192-.196

#11 		.183-.191 .092 .600-.650 .450 540 680
GSML66S .251-.375 .575
GSML68S .376-.500 .700
GSML610S .501-.625 .825
GSML612S .626-.750 .950
Countersunk 1/8" GSMC42S .092-.125 .129-.133

#30 		.122-.128 .031 .207-.233 .275 260 310
GSMC43S .126-.187 .337
GSMC44S .188-.250 .400
GSMC45S .251-.312 .462
5/32" GSMC54S .188-.250 .160-.164

#20 		.153-.159 .040 .268-.294 .425 370 470
GSMC56S .251-.375 .550
3/16" GSMC64S .188-.250 .192-.196

#11 		.183-.191 .050 .335-.361 .450 540 680

back to specifications

STAINLESS STEEL RIVET/STEEL MANDREL IFI 114 Grade 50
Head
Style 		Rivet
Dia.
Nom. 		GESIPA
Part
Number 		Grip
Range
(Inches) 		Hole Size
Drill No. 		Dimensions Min. Strength (lbs.)
D B A L Shear Tensile
Dome 1/8" GSMD42SS .020-.125 .129-.133

#30 		.122-.128 .040 .238-.262 .275 420 530
GSMD43SS .126-.187 .337
GSMD44SS .188-.250 .400
GSMD46SS .251-.375 .525
GSMD48SS .376-.500 .650
5/32" GSMD52SS .020-.125 .160-.164

#20 		.153-.159 .050 .296-.328 .300 650 820
GSMD54SS .126-.250 .425
GSMD56SS .251-.375 .550
3/16" GSMD62SS .020-.125 .192-.196

#11 		.183-.191 .060 .356-.394 .325 950 1200
GSMD64SS .126-.250 .450
GSMD66SS .251-.375 .575
GSMD68SS .376-.500 .700

back to specifications

STAINLESS STEEL RIVET/STAINLESS STEEL MANDREL IFI 114 Grade 51
Head
Style 		Rivet
Dia.
Nom. 		GESIPA
Part
Number 		Grip
Range
(Inches) 		Hole Size
Drill No. 		Dimensions Min. Strength (lbs.)
D B A L Shear Tensile
Dome 1/8" GSSMD42SS .020-.125 .129-.133

#30 		.122-.128 .040 .238-.262 .275 420 530
GSSMD43SS .126-.187 .337
GSSMD44SS .188-.250 .400
GSSMD46SS .251-.375 .525
GSSMD48SS .376-.500 .650
5/32" GSSMD52SS .020-.125 .160-.164

#20 		.153-.159 .050 .296-.328 .300 650 820
GSSMD54SS .126-.250 .425
GSSMD56SS .251-.375 .550
3/16" GSSMD62SS .020-.125 .192-.196

#11 		.183-.191 .060 .356-.394 .325 950 1200
GSSMD64SS .126-.250 .450
GSSMD66SS .251-.375 .575
GSSMD68SS .376-.500 .700

back to specifications
