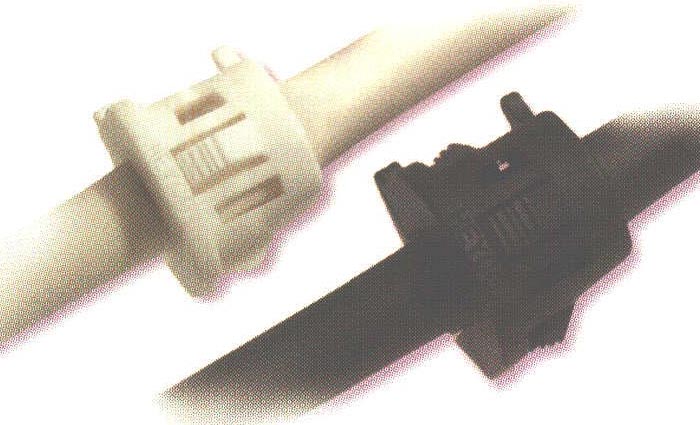

RDD Round Wire Lockit - US Patent No. 4913385

Click the product name or part number below to request a quote.

The next generation in Strain Relief
  • Installs with fingertip pressure into an easily punched standard round or Double D" strain relief hole. (No clumsy hand tools required!)
  • Automated application equipment speeds assembly and lowers costs while reducing or eliminating repetitive manual assembly motions.
  • Can be preassembled onto wire since chassis insertion isn’t required to keep it LOCKED on the wire.
  • Multiple panel locking steps snug lockit strain relief into range of panel thicknesses up to .157".
  • Recognized (far exceeds UL’s 35# pull-out test).
  • 94V-2 flammability rating.
  • Black, white, and custom colors available.
  • Heyco automated assembly equipment.
  • For matching plugs which can be used to fill/blank unused mounting holes.
Filter:
  Product Name  Color  Description  Mounting Hole Size [inches]  Mounting Hole Size [mm]  Thickness [inches]
1870
RDD 101-A BLACK
Black  RDD 101-A  0.625 w/ 0.550 flats  15.9 w/ 14.0 flats  0.032|0.040|0.048|0.063|0.099  Add to Quote

1852
RDD 101 BLACK
Black  RDD 101  0.625 w/ 0.550 flats  15.9 w/ 14.0 flats  0.063|0.032|0.048|0.040|0.099  Add to Quote

1855
RDD 201-2 BLACK
Black  RDD 201-2  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.078|0.140  Add to Quote

1857
RDD 201 BLACK
Black  RDD 201  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.032|0.063|0.126|0.157|0.099  Add to Quote

1871
RDD 101-A WHITE
White  RDD 101-A  0.625 w/ 0.550 flats  15.9 w/ 14.0 flats  0.032|0.040|0.048|0.099|0.063  Add to Quote

1853
RDD 101 WHITE
White  RDD 101  0.625 w/ 0.550 flats  15.9 w/ 14.0 flats  0.048|0.032|0.040|0.063|0.099  Add to Quote

1856
RDD 201-2 WHITE
White  RDD 201-2  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.078|0.140  Add to Quote

1858
RDD 201 WHITE
White  RDD 201  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.032|0.063|0.099|0.126|0.157  Add to Quote

Displaying 1 to 8 (of 8 products) Result Pages:  1
