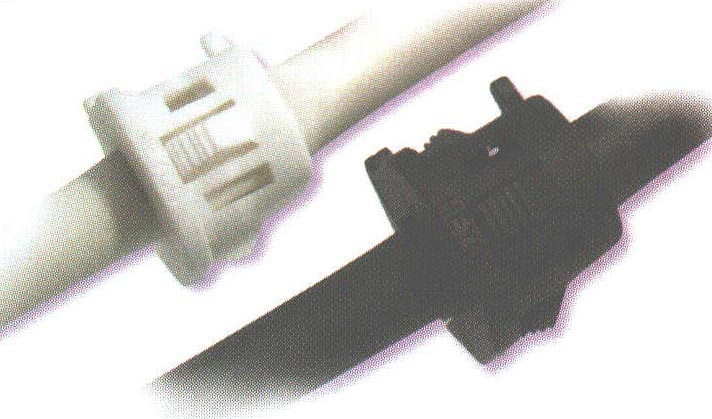

RDD Round Wire Lockit

Click the product name or part number below to request a quote.

The next generation in Strain Relief
US Patent No. 4913385
  • Installs with fingertip pressure into an easily punched standard round or Double D" strain relief hole. (No clumsy hand tools required!)
  • Automated application equipment speeds assembly and lowers costs while reducing or eliminating repetitive manual assembly motions.
  • Can be preassembled onto wire since chassis insertion isn’t required to keep it LOCKED on the wire.
  • Multiple panel locking steps snug lockit strain relief into range of panel thicknesses up to .187".
  • Recognized (far exceeds UL's 35# pull-out test).
  • 94V-2 flammability rating.
  • Black, white, and custom colors available.
  • For Heyco automated assembly equipment.
  • For matching plugs which can be used to fill/blank unused mounting holes.
Filter:
  Product Name  Color  Description  Mounting Hole Size [inches]  Mounting Hole Size [mm]  Thickness [inches]
1859
RDD 301-2 BLACK
Black  RDD 301-2  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.140|0.078  Add to Quote

1861
RDD 301 BLACK
Black  RDD 301  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.032|0.063|0.099|0.157|0.126  Add to Quote

1865
RDD 401 BLACK
Black  RDD 401  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.099|0.032|0.063|0.126|0.157  Add to Quote

1868
RDD 501 BLACK
Black  RDD 501  1.109 w/ 1.000 flats  28.2 w/ 25.4 flats  0.063|0.099|0.157|0.187|0.126  Add to Quote

1860
RDD 301-2 WHITE
White  RDD 301-2  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.078|0.140  Add to Quote

1862
RDD 301 WHITE
White  RDD 301  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.099|0.063|0.032|0.157|0.126  Add to Quote

1866
RDD 401 WHITE
White  RDD 401  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.099|0.063|0.032|0.126|0.157  Add to Quote

1869
RDD 501 WHITE
White  RDD 501  1.109 w/ 1.000 flats  28.2 w/ 25.4 flats  0.063|0.099|0.187|0.126|0.157  Add to Quote

Displaying 1 to 8 (of 8 products) Result Pages:  1
