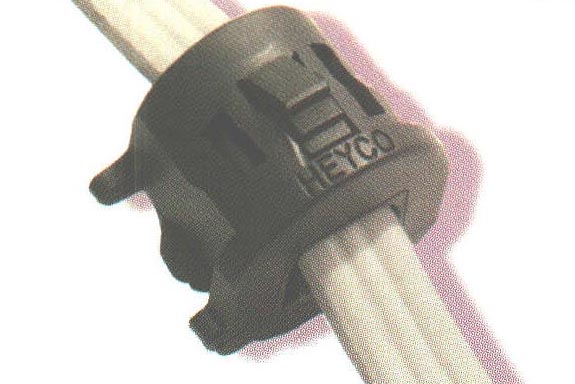

RDD Flat Wire Lockit

Click the product name or part number below to request a quote.

The next generation in Strain Relief
US Patent No. 4913385
  • Installs with fingertip pressure into an easily punched standard round or Double D" strain relief hole. (No clumsy hand tools required!)
  • Automated application equipment speeds assembly and lowers costs while reducing or eliminating repetitive manual assembly motions.
  • Can be preassembled onto wire since chassis insertion isn’t required to keep it LOCKED on the wire.
  • Multiple panel locking steps snug lockit strain relief into range of panel thicknesses up to .157".
  • Recognized (far exceeds UL's 35# pull-out test).
  • 94V-2 flammability rating.
  • Black, white, and custom colors available.
  • For Heyco automated assembly equipment.
  • For matching plugs which can be used to fill/blank unused mounting holes.
  • For Designer’s Lockit Labkit.
Filter:
  Product Name  Color  Description  Mounting Hole Size [inches]  Mounting Hole Size [mm]  Thickness [inches]
1872
RDD 100A BLACK FLAT
Black  RDD 100A  0.625 w/ 0.550 flats  15.9 w/ 14.0 flats  0.032|0.040|0.048|0.063|0.099  Add to Quote

1874
RDD 100 BLACK FLAT
Black  RDD 100  0.625 w/ 0.550 flats  15.9 w/ 14.0 flats  0.063|0.032|0.040|0.048|0.099  Add to Quote

1878
RDD 200 BLACK FLAT
Black  RDD 200  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.032|0.063|0.099|0.126|0.157  Add to Quote

1876
RDD 200-2 BLACK FLAT
Black  RDD 200-2  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.140|0.078  Add to Quote

1873
RDD 100A WHITE FLAT
White  RDD 100A  0.625 w/ 0.550 flats  15.9 w/ 14.0 flats  0.040|0.048|0.032|0.063|0.099  Add to Quote

1875
RDD 100 WHITE FLAT
White  RDD 100  0.625 w/ 0.550 flats  15.9 w/ 14.0 flats  0.032|0.040|0.048|0.063|0.099  Add to Quote

1879
RDD 200 WHITE FLAT
White  RDD 200  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.032|0.063|0.099|0.126|0.157  Add to Quote

1877
RDD 200-2 WHITE FLAT
White  RDD 200-2  0.875 w/ 0.770 flats  22.2 w/ 19.6 flats  0.078|0.140  Add to Quote

Displaying 1 to 8 (of 8 products) Result Pages:  1
