Heyco Products
Wire Termination
Quick Connects--Insulation Support Terminals | Quick Connects--Flag Insulation Support Terminals | Ring and Spade Terminals | Standard Appliance Terminal Blocks | Wire Protector Terminal Blocks | Barrier Terminal Blocks | Screw to 3-Tab Terminal Blocks | Screw to 2-Tab Terminal Blocks | OEM All-Plastic Wire Connectors | OEM High Temp Wire Connectors | Crimp-On Wire Connectors | Screwless Junction Box Connectors | Color Coded Wire Connectors | Wire Connector Accessories | Aluminum Solderless Connectors | Copper Lug Connectors | Wire Connector Labkit & Empty Labkit Boxes

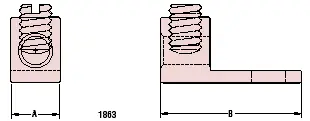

Aluminum Solderless Connectors

Aluminum Solderless Connectors Aluminum Solderless Connectors

Underwriters’ LaboratoriesRecognized under the Component Program of Underwriters’ Laboratories File #E-80121.
Canadian Standards AssociationCertified by Canadian Standards Association File #LR-211101.

Download Cad DrawingsClick on one of the green links below to download a CAD Drawing of this product.
Wire
Range		 Part No. Desc. Height With Max. Wire Part Dimensions
A
Width		 B
Length 		Bolt Size
in mm in mm in mm in mm
6-14 1863 A35 1/2 12,7 3/8 9,5 1-1/16 27,0 1/4.172 6,44,4
2-14 1864 A90 9/16 14,3 1/2 12,7 1-5/32 29,4

  • Made from high strength, high Conductivity 6061-T6 aluminum alloy.
  • Compact design–lightweight yet strong. • Requires no special installation tools.
  • Electro-tin plated for low contact resistance and corrosion protection when used with copper conductors.
  • Ports are marked with catalog description and conductor range.
  • UL and CSA certified for use with copper and aluminum conductors.
