Heyco® Strain Reliefs For European Requirements
Heyco® Strain Reliefs For European Requirements

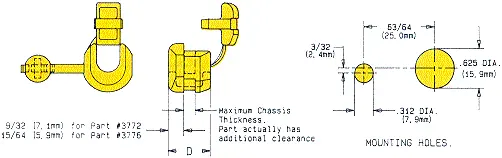

Nylon fasteners designed to meet those requirements wherein the strain relief device must remain attached to the chassis during cable removal or replacement.

Swipe
Will Fit These Cables Chassis Dimensions Part No. UL/CSA Description D
Body Length
Cross
Section		 Approximate
Diameter		 A
Mounting
Hole Diameter		 B
To Prevent
Rotation		 Maximum Chassis
Thickness		 Black
in.     mm. in.     mm. in.    mm. in.    mm.
Round .300    7,6 .625 15,9 N/A .125   3,2 3772 SR 6P10 CEE .671 17,1
.325-  8.3-
.360   9.1		 .625 15,9 N/A .125   3,2 3776 SR 6P30 CEE .625  15,9
  • A button lock, flexibly connected to the bushing, mounts into a hole alongside the strain relief bushing.
  • This button lock secures the strain relief bushing to the chassis during cable removal or replacement.
  • Molded of type 6/6 nylon.  ASTM D-4066; flammability classification 94V-2; temperature index 125°C.  Maximum temperature on the strain relieving part shall not exceed 105°C.
eyco® Strain Reliefs For European Requirements
Heyco Strain Relief For Switching Power Supply
Heyco Strain Relief For Switching Power Supply Component Program of Underwriters Recognized under the Component Program of Underwriters' Laboratories File #E-15331
Canadian Standards Association Certified by Canadian Standards Association File #LR-8919

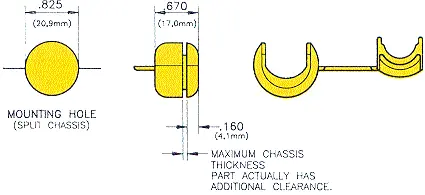

  • Strain relief is designed to be installed in split chassis mounting hole. (see schematic)
  • Each Heyco Strain Relief securely anchors, insulates and protects cables at chassis entry points.
  • Molded of type 6/6 nylon.  ASTM D-40660; flammability classification 94V-2; temperature index 125°C.  Maximum temperature on the part shall not exceed 105°C.
Swipe
Will Fit These Cables Chassis Dimensions Part No. UL/CSA
Description		 D
Body
Length
UL
Type
Description		 AWG
Conductors		 Approximate
Cable Size		 A
Mounting
Hole Diameter		 B
To Prevent
Rotation		 Maximum
Thickness
Black
in.        mm. in.     mm. in.     mm. in.      mm. in. mm.
SO 14/4 .560     14,2 .825   21,0

N/A

 .062       1,6 1263 SR 8R-2 .670/17,0
SO 12/3 .590     15,0







Standard Color: Black.

Heyco Strain Relief For Switching Power Supply
