Wire Positioning: J Style Wire Clips

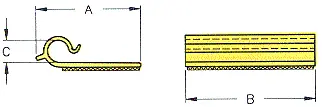

Heyclip™ "J" Style Wire Clips
|
|
- Extruded from a transparent, rigid PVC.
- J style wire clips feature low profile design for when clearance is a problem.
- Large adhesive base for greater holding power.
- Quick and easy installation-simply peel off backing and press into place. Recommended
installation temperature from 60°F (16°C) to 80°F (27°C).
- J style wire clips come in six sizes ranging from .125"(3,2mm) to .500"(12,7mm).
- Rated static loads apply for parts fastened to a flat, clean, dry surface used within
a temperature range of -20°F(-7°C) to 150°F(66°C).
|
Click on one of the green links below to download a CAD Drawing of J Style Wire Clips.
|
|
|
|
|
Part Dimensions
|
Max.
Bundle
Diameter
|
Part No.
|
Description
|
Rated Static
Load(lb.)
|
A
|
B
|
C
|
|
in.
mm.
|
in.
mm.
|
in.
mm.
|
in.
mm.
|
|
.125
3,2
|
3839
|
WCJA125-750
|
3/4
|
1.00
25,4
|
1.00
25,4
|
.21
5,3
|
|
.187
4,7
|
3840
|
WCJA187-1000
|
1
|
1.00
25,4
|
1.25
31,8
|
.21
6,9
|
|
.250
6,4
|
3841
|
WCJA250-1125
|
1-1/8
|
1.00
25,4
|
1.50
38,1
|
.34
8,6
|
|
.312
7,9
|
3842
|
WCJA312-1750
|
1-3/4
|
1.25
31,8
|
1.75
44,5
|
.42
10,7
|
|
.375
9,5
|
3843
|
WCJA375-2000
|
2
|
1.25
31,8
|
2.00
50,8
|
.48
12,2
|
|
.500
12,7
|
3844
|
WCJA500-2250
|
2-1/4
|
1.25
31,8
|
2.25
57,2
|
.64
16,3
|
Standard Color: Gray
|
|

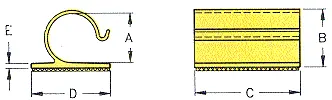

Heyclip™ "C" Style Wire Clip
|
|
|
- Extruded from a 94V-0 PVC for fire and flame resistance.
- Low profile design for when clearance is a problem.
- Large adhesive base for greater holding power.
- Rated static loads apply for parts fastened to a flat,
clean, dry surface used within a temperature range of -20°F(-7°C)
to 150°F(66°C).
|
|
|
|
|
Part Dimensions
|
Max.
Bundle
Diameter
|
Part No.
|
Description
|
A
|
B
|
C
|
D
|
E
|
|
in. mm.
|
in. mm.
|
in. mm.
|
in. mm.
|
in. mm.
|
in. mm.
|
|
.500
12,7
|
3794
|
WCCA 500
|
.38
9,7
|
.47
11,9
|
1.00
25,4
|
.75
19,1
|
.05
1,3
|
Standard Color: Gray
|
