Heyclip™ Adhesive Backed Vinyl Wire Clips |
 |
-
Expandable clip design allows for larger wire range.
-
Low profile wire clip design for when clearance is a problem.
-
Four sizes ranging from .125"(3,2mm) to 1.00"(25,4mm).
-
Quick and easy installation-simply peel off wire clip backing and press into place. Recommended installation temperature from 60°F(16°C) to 80°F(27°C) and 50%RH (max).
-
Rated static loads apply for parts fastened to a flat, clean, dry surface used within a temperature range of -20°F(-7°C) to 150°F(66°C).
|
 Click on one of the green links below to download a CAD Drawing of this wire clip.
|
Effective Clamp Range |
Part No. |
|
|

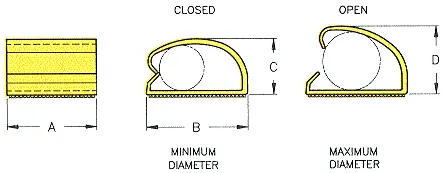

Part Dimensions |
|
Min. Dia. |
Max. Dia. |
Rated Static
Load(lb.) |
Description |
A |
B |
C |
D |
|
in. mm. |
in. mm. |
in. mm. |
in. mm. |
in. mm. |
in. mm. |
|
.125 3,2 |
.250 6,4 |
3821 |
1/8 |
WCAV 125 |
.51 13,0 |
.50 12,7 |
.28 7,1 |
.34 8,6 |
|
.250 6,4 |
.500 12,7 |
3822 |
1/4 |
WCAV 250 |
.76 19,3 |
.76 19,3 |
.40 10,2 |
.66 16,8 |
|
.500 12,7 |
.750 19,1 |
3823 |
1/2 |
WCAV 500 |
1.00 25,4 |
1.14 29,0 |
.56 14,2 |
.87 22,1 |
|
.750 19,1 |
1.000 25,4 |
3824 |
7/8 |
WCAV 750 |
1.25 31,8 |
1.50 38,1 |
.74 18,8 |
1.20 30,5 |
Standard Wire Clip Color: Gray
 |
|
