| Heyclip™ Non-Locking Adhesive-Backed Clips |
- Gathers and directs cables singly or in groups smaller
than those accommodated by Heyco Wire Holders.
- Molded of type 6/6 nylon. Flammability classification
94V-2.
|
 Click on one of the green links below to download a CAD Drawing of this product.
| Part No. |
|
Part Dimensions |
| Description |
Bundle Diameter |
Overall Height |
Base |
| in.
mm. |
in.
mm. |
in.
mm. |
| 3638 |
WCA-4 |
1/8x
3,2x
1/4
6,4 |
1/4
6,4 |
5/8x
15,9x
5/8
15,9 |
| 3629 |
WCA-43 |
3/16
4,8 |
5/16
7,9 |
| 3636 |
WCA-44 |
1/4
6,4 |
3/8
9,5 |
| 3637 |
WCA-46 |
3/8
9,5 |
1/2
12,7 |
3/4x
19,1x
3/4
19,1 |
| 3639 |
WCA-5 |
1/8x
3,2x
1/2
12,7 |
5/16
7,9 |
1x
25,4x
1-1/8
28,6 |
Standard Color: Natural
|

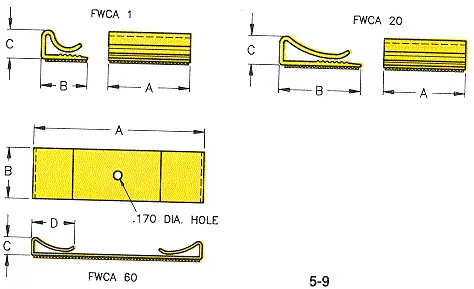

Heyclip™ Flat Wire Clips |
|
- Organizes and retains ribbon wire and flat cables.
- Flat cable is easily inserted or removed from FWCA 1 or
FWCA 2;, a serrated inner base reduces slippage once the
cable is installed in the clip.
- Quick and easy installation-simply peel off backing and
press into place (optional screw hole mount is provided
in the FWCA 60). Recommended installation temperature
from 60°F(16°C) to 80°F(27°C).
- Recommended temperature range of -20°F(-7°C) to 150°F(66°C)
and 50%RH (max).
|
|
|
|
Part Dimensions |
| Will Fit These Cables |
Part No. |
Description |
A |
B |
C |
D |
| in.
mm. |
in.
mm. |
in.
mm. |
in.
mm. |
| For 1 to 20 Conductors |
3788 |
FWCA 1 |
1.00 25,4 |
.57 14,5 |
.36
9,1 |
- |
| For 20 or more conductors |
3789 |
FWCA 20 |
1.00 25,4 |
1.00 25,4 |
.36
9,1 |
- |
| For 60 Conductors |
3790 |
FWCA 60 |
3.34 84,8 |
1.00 25,4 |
.23
5,8 |
.76
19,3 |
Standard Color: Gray
|
