Wire Positioning: Cable Wrap

Heyco® Cable Wrap
  • Cable wrap bundles and protects cables, wires, nylon tubing and hoses from 1/16"(1,6mm) to 7" (178mm) diameters.
  • Heyco ® Cable Wrap absorbs vibration, insulates cables and resists abrasion.
  • Easy to use:  cable wrap twists on like tape.
  • Heyco® Cable wrap allows breakouts of single/multiple wires and rerouting of replacement wires.
  • Cable wrap comes in eight sizes, available in standard cut.
  • Cable wrap conforms to the following Mil Specs:
        Mil I 631D
        Mil P 21922A
        Mil M 20693A Type II
        Mil M 20693B Type I
        Mil M 22096
        Mil M 22096A
        Mil M 19098
        Mil T 47287A Type II
  • Polyethylene and nylon material products are available in UV black or natural color.

Standard Cut Polyethylene Cable Wrap:

Bundle Range Part No.   Part Dimensions
Minimum
Diameter		 Maximum
Diameter		 UV
Black		 Natural Description A
Outside
Diameter		 B
Pitch
 C
Thickness
in.       mm. in.       mm. in.         mm. in.         mm. in.         mm.
.062        1,6 .500      12,7 8900 8901 CW 125 PE .125       3,2 .187       4,8 .032        0,8
.125       3,2 1.500    38,1 8904 8905 CW 187 PE .187       4,8 .187       4,8 .031        0,8
.187       4,8 2.000    50,8 8908 8909 CW 250 PE .250       6,3 .375       9,5 .045        1,1
.312       7,9 3.000    76,2 8912 8913 CW 375 PE .375       9,5 .438     11,1 .052        1,3
.375       9,5 4.000  101,6 8916 8917 CW 500 PE .500     12,7 .500     12,7 .062        1,6
.500     12,7 4.500  114,3 8920 8921 CW 625 PE .625     15,9 .625     15,9 .062        1,6
.750     19,0 5.000  127,0 8924 8925 CW 750 PE .750     19,0 .750     19,0 .065        1,7
1.000   25,4 7.000  177,8 8928 8929 CW 1000 PE 1.000   25,4 1.000   25,4 .095        2,4

Nylon Cable Wrap:

Bundle Range Part No.   Part Dimensions
Minimum
Diameter		 Maximum
Diameter		 UV
Black		 Natural Description A
Outside
Diameter		 B
Pitch
 C
Thickness
in.       mm. in.       mm. in.         mm. in.         mm. in.         mm.
.062       1,6 .500      12,7 8932 8933 CW 125 N .125        3,2 .187        4,8 .015        0,4
.125       3,2 1.500    38,1 8936 8937 CW 187 N .187        4,8 .187        4,8 .020        0,5
.187       4,8 2.000    50,8 8940 8941 CW 250 N .250        6,3 .375        9,5 .025        0,6
.312       7,9 3.000    76,2 8944 8945 CW 375 N .375        9,5 .438      11,1 .035          0,9
.375       9,5 4.000  101,6 8948 8949 CW 500 N .500      12,7 .500      12,7
.500     12,7 4.500  114,3 8952 8953 CW 625 N .625      15,9 .625      15,9 .032          0,8
5.000  127,0 8956 8957 CW 750 N .750      19,0 .750      19,0
1.000   25,4 7.000  177,8 8960 8961 CW 1000 N 1.000    25,4 1.000    25,4

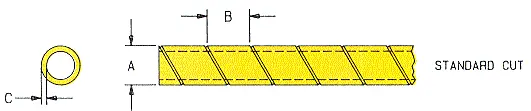

Heyco® Cable Wrap
