Heyco® Nylon Fastener: Duplex Outlets



Heyco® Duplex OutletsHeyco® Duplex Outlets
Back Push In

Part No. Description Part Dimensions Mounting Hole Dimension
A B C D E
in mm in mm in mm in mm in mm

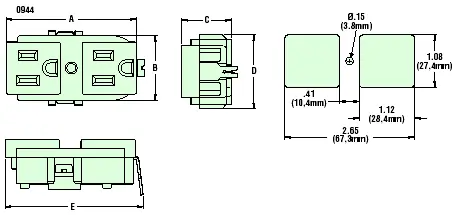

0944 5-15R DUPLEX SQUARE 2.64 67,0 1.31 33,3 1.02 26,0 1.49 37,8 2.82 71,7 See Schematic Below

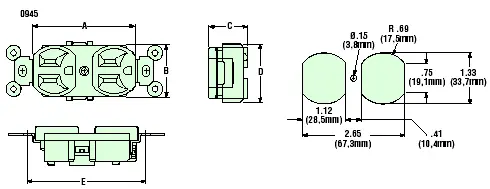

0945 5-5R DUPLEX OVAL W/ EARS 2.62 66,6 1.31 33,3 1.02 26,0 1.49 37,8 3.31 84,1 See Schematic Below

Standard Nylon Fastener Color: Black

Heyco® Duplex Outlets

Heyco® Duplex Outlets

• NEMA 5-15 R duplex outlets are rated at 15 Amps/125 Volts.
• Side or back wiring versions allow ease of installation.
• UL and CSA Approved.
