Bushings and Plugs: Heyco Feets of Strength, Press In Insert

Heyco Feets of Strength, Press In Insert


Heyco Feets of Strength



  • Molded of Santoprene for skid and vibration resistance.
  • Two piece construction comes pre-assembled.

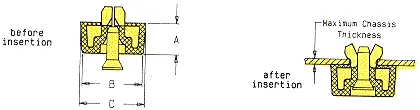

  • To install, simply insert pin into the mounting hole, then press to secure.

FSD - Soft Feet with Drive Pin
Chassis Dimensions Part No.   Part Dimensions
Mounting
Hole
Size
Thickness Range Description A
Height
B Top Diameter C Bottom
Diameter
Minimum Maximum
in.     mm. in.     mm. in.      mm. in.   mm. in.     mm. in.     mm.
.307      7,8 .031       0,8 .047       1,2 2543 FSD 3019-031 .197    5,0 .906      23,0 .984      25,0
.307      7,8 .197       5,0 .315       8,0 2544 FSD 3023-197 .236    6,0 .787      20,0 .827      21,0
.307      7,8 .031       0,8 .047       1,2 2545 FSD 3039-031 .394   10,0 .709      18,0 .787      20,0
.319      8,1 .031       0,8 .047       1,2 2547 FSD 3147-031 .472   12,0 .709      18,0 .787      20,0
.319      8,1 .031       0,8 .047       1,2 2549 FSD 3159-031 .591   15,0 .709      18,0 .787      20,0
.319      8,1 .031       0,8 .047       1,2 2551 FSD 3170-031 .709   18,0 .709      18,0 .787      20,0
Standard Color:  Black
