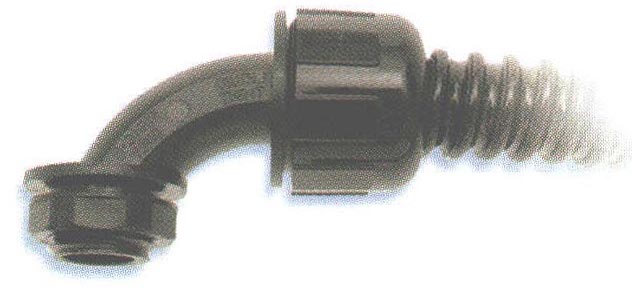

Heyco-Flex Nylon Sweep NPT Fittings - US Patent No. 4900068

Click the product name or part number below to request a quote.

For Flexible, Nonmetallic Liquid Tight Conduit and Tubing

Foreign Patents

  • Sizes 3/8 thru 2" for use with Heyco-Flex Conduit and Tubing.
  • Smooth internal surfaces for easier wire installation around corner angles.
  • Resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification and testing.
  • No disassembly required. Instead, the installer simply pushes the conduit or tubing onto the ferrule, then tightens the domed sealing nut. This completed assembly can then be secured in the chassis by the locknut (or first secure the connector into an NPT threaded hole).
  • No threading of the conduit or tubing is required to install. This eliminates the possibility of cutting the conduit and creating leak paths.
  • Complete conduit/connector system is reusable. Conduit will not wind tight onto the connector during assembly and can be easily removed by pulling while turning in a clockwise direction.
  • Suitable for indoor/outdoor use; for original equipment manufacturers or field installers.
  • Lower installed cost.
  • Protection class IP 68 up to 70 psi (5 bar) water pressure.
  • Black connectors provided with nylon locknut, packed separately.
  • Use of a sealing washer may be required for wet locations.
  • Gray connectors provided with assembled O-ring and metal locknut.
Filter:
  Product Name  Color  Conduit/Tubing Trade Size  Description  Thread Size  Clearance Hole - A [inches]
8423
HFC 3/8-90R BLACKw/8463 NUT
Black  41341  HFC 3/8-90R  1/2 NPT  0.875  Add to Quote

8425
HFC 1/2-90R BLACKw/8463 NUT
Black  41276  HFC 1/2-90R  3/4 NPT  0.875  Add to Quote

8427
HFC 3/4-90R BLACKw/8465 NUT
Black  41337  HFC 3/4-90R  1 NPT  1.109  Add to Quote

8412
HFC 1-90R BLACKw/8467 NUT
Black  HFC 1-90R  1-1/4 NPT  1.375  Add to Quote

8652
HFC 1-1/4-90R BLACK
Black  1.25  HFC 1-1/4-90R PVC  1-1/2 NPT  1.688  Add to Quote

8654
HFC 1-1/2-90R BLACK
Black  1.5  HFC 1-1/2-90R PVC  2 NPT  1.938  Add to Quote

8656
HFC 2-90R BLACK
Black  HFC 2-90R PVC    2.375  Add to Quote

8424
HFC 3/8-90R GRAYw/2250 NUT
Gray  41341  HFC 3/8-90R  1/2 NPT  0.875  Add to Quote

8426
HFC 1/2-90R GRAYw/2250 NUT
Gray  41276  HFC 1/2-90R  3/4 NPT  0.875  Add to Quote

8428
HFC 3/4-90R GRAYw/2251 NUT
Gray  41337  HFC 3/4-90R  1 NPT  1.109  Add to Quote

8413
HFC 1-90R GRAYw/2252 NUT
Gray  HFC 1-90R  1-1/4 NPT  1.375  Add to Quote

8653
HFC 1-1/4-90R GRAY
Gray  1.25  HFC 1-1/4-90R PVC  1-1/2 NPT  1.688  Add to Quote

8655
HFC 1-1/2-90R GRAY
Gray  1.5  HFC 1-1/2-90R PVC  2 NPT  1.938  Add to Quote

8657
HFC 2-90R GRAY
Gray  HFC 2-90R PVC    2.375  Add to Quote

8429
HFC 1/2-90R-S BLACK
Black  41276  HFC 1/2-90R-S    0.875  Add to Quote

Displaying 1 to 15 (of 15 products) Result Pages:  1
