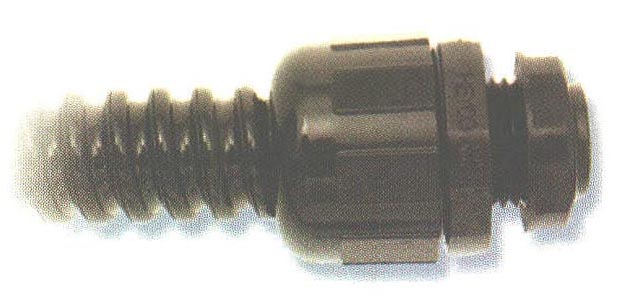

Heyco-Flex- Nylon Straight NPT Fittings - US Patent No. 4900068

Click the product name or part number below to request a quote.

For Flexible, Nonmetallic Liquid Tight Conduit and Tubing

Foreign Patents

  • Eight sizes for use with 1/4 thru 2" Heyco-Flex Conduit and Tubing.
  • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification and testing.
  • No disassembly required. Instead, the installer simply pushes the conduit or tubing onto the ferrule, then tightens the domed sealing nut. This completed assembly can then be secured in the panel by the locknut or into an NPT threaded hole.
  • No threading of the conduit or tubing is required to install. This eliminates the possibility of cutting the conduit and creating leak paths.
  • Complete conduit/connector system is reusable. Conduit will not wind tight onto the connector during assembly and can be easily removed by pulling while turning in a clockwise direction.
  • Use of a sealing washer may be required for wet locations.
  • Suitable for indoor/outdoor use; for original equipment manufacturers or field installers.
  • Protection class IP 68 up to 70 psi (5 bar) water pressure.
  • Black connectors provided with nylon locknut; packed separately.
  • Gray connectors provided with assembled O-ring and metal locknuts.
Filter:
  Product Name  Color  Conduit/Tubing Trade Size  Description  Thread Size  Clearance Hole - A [inches]
8400
HFC 3/8 BLACKw/8463 NUT
Black  41341  HFC 3/8  1/2 NPT"  0.875  Add to Quote

8402
HFC 1/2 BLACKw/8463 NUT
Black  41276  HFC 1/2  1/2 NPT"  0.875  Add to Quote

8404
HFC 3/4 BLACKw/8465 NUT
Black  41337  HFC 3/4  3/4 NPT"  1.109  Add to Quote

8406
HFC 1 BLACKw/8467 NUT
Black  HFC 1  1 NPT"  1.375  Add to Quote

8638
HFC 1-1/4 BLACK
Black  1.25  HFC 1 1/4 PVC  1 1/4 NPT"  1.688  Add to Quote

8640
HFC 1-1/2 BLACK
Black  1.5  HFC 1 1/2 PVC  1 1/2 NPT"  1.938  Add to Quote

8642
HFC 2 BLACK
Black  HFC 2 PVC  2 NPT"  2.375  Add to Quote

8398
HFC 1/4-PG-7 BLKw/3165 NUT
Black  41278  HFC 1/4-PG-7  PG 7  0.492  Add to Quote

8401
HFC 3/8 GRAYw/2250 NUT
Gray  41341  HFC 3/8  1/2 NPT"  0.875  Add to Quote

8403
HFC 1/2 GRAYw/2250 NUT
Gray  41276  HFC 1/2  1/2 NPT"  0.875  Add to Quote

8405
HFC 3/4 GRAYw/2251 NUT
Gray  41337  HFC 3/4  3/4 NPT"  1.109  Add to Quote

8407
HFC 1 GRAYw/2252 NUT
Gray  HFC 1  1 NPT"  1.375  Add to Quote

8639
HFC 1-1/4 GRAY
Gray  1.25  HFC 1 1/4 PVC  1 1/4 NPT"  1.688  Add to Quote

8641
HFC 1-1/2 GRAY
Gray  1.5  HFC 1 1/2 PVC  1 1/2 NPT"  1.938  Add to Quote

8643
HFC 2 GRAY
Gray  HFC 2 PVC  2 NPT"  2.375  Add to Quote

Displaying 1 to 15 (of 15 products) Result Pages:  1
