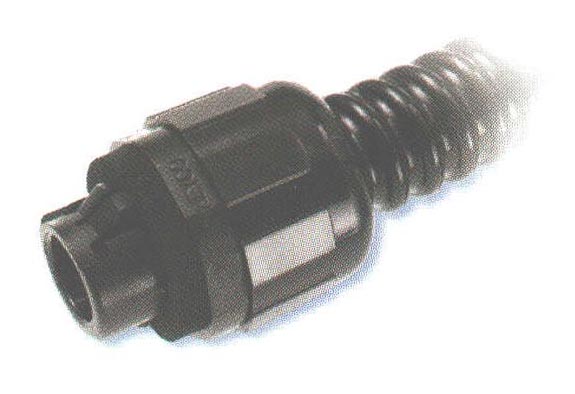

Heyco-Flex- Nylon Snap-In" Fittings - US Patent No. 4900068"

Click the product name or part number below to request a quote.

For Flexible, Nonmetallic Liquid Tight Conduit and Tubing

Foreign Patents

  • Five sizes, 1/4 thru 1", for use with Heyco-Flex Conduit and Tubing.
  • Assembly friendly! The installer simply pushes the conduit or tubing onto the ferrule, then tightens the domed sealing nut. This completed assembly can then be “snapped” into the panel with fingertip pressure.
  • No threading of the conduit or tubing required to install. This eliminates the possibility of cutting the conduit and creating leak paths.
  • Complete conduit/fitting system is reusable. Conduit will not wind tight onto the connector during assembly and can be easily removed by pulling while turning in a clockwise direction.
  • Suitable for indoor/outdoor use; for original equipment manufacturers or field installers.
  • Resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Protection class IP 68 up to 70 psi (5 bar) water pressure.
Filter:
  Product Name  Color  Conduit/Tubing Trade Size  Description  Mounting Hole Dia. - A [inches]  Mounting Hole Dia. - A [mm]
8382
HFC 1/4-S BLACK
Black  1/4  HFC 1/4-S  0.5  12.7  Add to Quote

8384
HFC 3/8-S BLACK
Black  3/8  HFC 3/8-S  0.875  22.2  Add to Quote

8386
HFC 1/2-S BLACK
Black  1/2  HFC 1/2-S  0.875  22.2  Add to Quote

8388
HFC 3/4-S BLACK
Black  3/4  HFC 3/4-S  1.09  27.7  Add to Quote

8390
HFC 1-S BLACK
Black  HFC 1-S  1.375  34.9  Add to Quote

Displaying 1 to 5 (of 5 products) Result Pages:  1
