Home » Liquid Tight Flexible Conduit & Fittings » Heyco-Flex Tubing » Heyco-Flex I - Liquid Tight Conduit


Heyco-Flex I - Liquid Tight Conduit

Click the product name or part number below to request a quote.

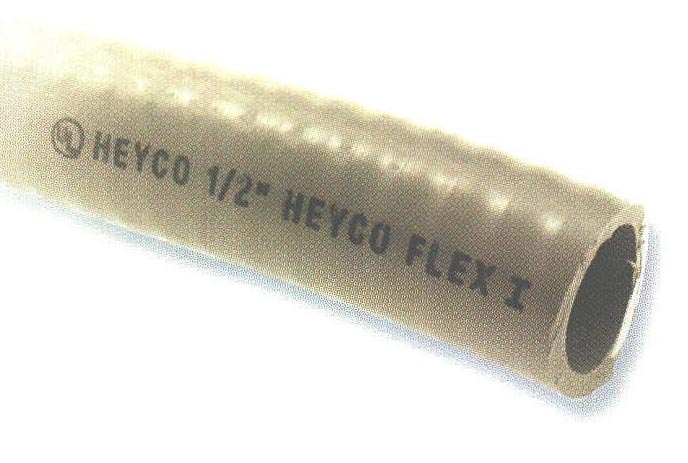

Heyco-Flex I - Liquid Tight Conduit
Click to enlarge
Flexible, Nonmetallic Liquid Tight Electrical Conduit
  • 3/8 thru 2" trade sizes.
  • Use with nylon Heyco-Flex Connectors; Snap-in, Straight or Sweep. See pages 0-18, 0-19, 1-20.
  • May also be used with Heyco’s Die Cast Fittings for Liquid Tight Conduit. See page 0-23 or 0-24.
  • Resists corrosion, abrasion, oil, water, acid, metal shavings, and rough environments.
  • Resists abuse, pull, and crushing.
  • Temperature ratings : 80°C (203°F) DRY 70°C (160°F) OIL Resistance 60°C (140°F) WET locations
  • Passes submersion test of 70 psi.
  • Mounting brackets are available.
  • Smooth inside for easier wire pulling; no hazardous sharp edges or burrs; will not damage conductors.
  • Lightweight and lower installed cost.
  • Quick installation; cuts with utility knife, PVC cutter or Heyco cutting tool (#8340).
  • Integral rigid and flexible PVC construction.
  • Suitable for indoor/outdoor use :
    - HVAC Equipment
    - Machine Tools
    - Marine Equipment
    - Motors and Controls
    - Printing Equipment
    - Pumps
    - Refrigeration Equipment
    - Approved for direct burial.
  • Order Part No. 8340, VF-28 Cutting Tool, for cutting Heyco-Flex conduit and tubing cleanly and evenly.
Filter:
  Product Name  Color  Trade Size [inches]  Description  Outside Diameter - A [inches]  Outside Diameter - A [mm]
8430
 HF1 3/8 TYPE B 100' COIL GRAY
 Gray  3/8  HF1 3/8  0.7  17.8  Add to Quote
8431
 HF1 1/2 TYPE B 100' COIL GRAY
 Gray  1/2  HF1 1/2  0.83  21.1  Add to Quote
8432
 HF1 3/4 TYPE B 100' COIL GRAY
 Gray  3/4  HF1 3/4  1.04  26.4  Add to Quote
8433
 HF1 1 TYPE B 100' COIL GRAY
 Gray  1  HF1 1  1.303  33.1  Add to Quote
8434
 HF1 1-1/4 TYPE B 100' COIL GRA
 Gray  1 1/4  HF1 1 1/4  1.645  41.8  Add to Quote
8435
 HF1 1-1/2 TYPE B 50' COIL GRAY
 Gray  1 1/2  HF1 1 1/2  1.883  47.8  Add to Quote
8436
 HF1 2 TYPE B 50' COIL GRAY
 Gray  2  HF1 2  2.358  59.9  Add to Quote
Displaying 1 to 7 (of 7 products) Result Pages:  1
