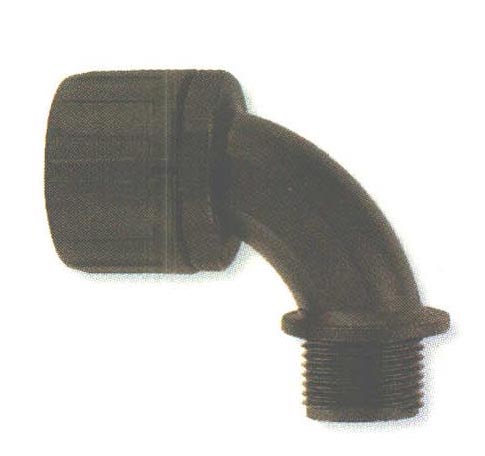

Flexicon Nylon (PA66); Sweep PG Thread Fittings

Click the product name or part number below to request a quote.

For Flexible, Corrugated Nylon Conduit/Tubing
  • For use with 1/4 thru 2" Flexicon corrugated conduit/tubing.
  • Nine PG thread sizes for use with eight conduit sizes.
  • Suitable for use with both coarse and/or fine pitch conduit/tubing.
  • Unitary design and assembled shipment allows fast fit.
  • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification.
  • No threading of the conduit or tubing is required to install.
  • Locknuts NOT included.
  • Suitable for use by original equipment manufacturers.
  • Protection class IP 66 per EN 60529 including high pressure water jet from any angle.
  • Vibration and tamper resistant.
  • Consult factory for FPAX fittings for use in IP 68 or 67 (as well as 66) applications.
UL Recognized Components."
Filter:
  Product Name  Color  Nominal Size [inches]  Description  Thread Size  Thread Length - A [inches]
F8640
PG-7-90 10MM FPA10-PG7-90/BL
Black  1/4  FPA 10-PG7-90  PG 7  0.315  Add to Quote

F8642
PG-9-90 13MM FPA13-PG9-90/BL
Black  3/8  FPA 13-PG9-90  PG 9  0.394  Add to Quote

F8646
PG-11-90 16MM FPA16-PG11-90/BL
Black  1/2  FPA 16-PG11-90  PG 11  0.394  Add to Quote

F8648
PG-13-90 16MM FPA16-PG13-90/BL
Black  1/2  FPA 16-PG13-90  PG 13  0.394  Add to Quote

F8650
PG-13-90 21MM FPA21-PG13-90/BL
Black  3/4  FPA 21-PG13-90  PG 13  0.394  Add to Quote

F8652
PG-16-90 21MM FPA21-PG16-90/BL
Black  3/4  FPA 21-PG16-90  PG 16  0.453  Add to Quote

F8656
PG-21-90 28MM FPA28-PG21-90/BL
Black  FPA 28-PG21-90  PG 21  0.472  Add to Quote

F8660
PG-29-90 34MM FPA34-PG29-90/BL
Black  1 1/4  FPA 34-PG29-90  PG 29  0.472  Add to Quote

F8662
PG-36-90 42MM FPA42-PG36-90/BL
Black  1 1/2  FPA 42-PG36-90  PG 36  0.472  Add to Quote

F8666
PG-48-90 54MM FPA54-PG48-90/BL
Black  FPA 54-PG48-90  PG 48  0.472  Add to Quote

F8641
PG-7-90 10MM FPA10-PG7-90/GY
Gray  1/4  FPA 10-PG7-90  PG 7  0.315  Add to Quote

F8643
PG-9-90 13MM FPA13-PG9-90/GY
Gray  3/8  FPA 13-PG9-90  PG 9  0.394  Add to Quote

F8647
PG-11-90 16MM FPA16-PG11-90/GY
Gray  1/2  FPA 16-PG11-90  PG 11  0.394  Add to Quote

F8649
PG-13-90 16MM FPA16-PG13-90/GY
Gray  1/2  FPA 16-PG13-90  PG 13  0.394  Add to Quote

F8651
PG-13-90 21MM FPA21-PG13-90/GY
Gray  3/4  FPA 21-PG13-90  PG 13  0.394  Add to Quote

F8653
PG-16-90 21MM FPA21-PG16-90/GY
Gray  3/4  FPA 21-PG16-90  PG 16  0.453  Add to Quote

F8657
PG-21-90 28MM FPA28-PG21-90/GY
Gray  FPA 28-PG21-90  PG 21  0.472  Add to Quote

F8661
PG-29-90 34MM FPA34-PG29-90/GY
Gray  1 1/4  FPA 34-PG29-90  PG 29  0.472  Add to Quote

F8663
PG-36-90 42MM FPA42-PG36-90/GY
Gray  1 1/2  FPA 42-PG36-90  PG 36  0.472  Add to Quote

F8667
PG-48-90 54MM FPA54-PG48-90/GY
Gray  FPA 54-PG48-90  PG 48  0.472  Add to Quote

Displaying 1 to 20 (of 20 products) Result Pages:  1
