Home » Liquid Tight Flexible Conduit & Fittings » Flexicon Nylon Tubing » Flexicon Nylon (PA66); Sweep NPT Thread Fittings

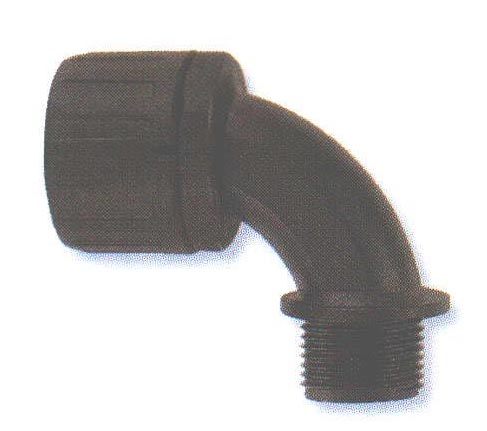

Flexicon Nylon (PA66); Sweep NPT Thread Fittings

Click the product name or part number below to request a quote.

For Flexible, Corrugated Nylon Conduit/Tubing
  • Use with 1/2 thru 2" Flexicon corrugated conduit/tubing.
  • Five NPT thread sizes for use with six conduit sizes.
  • Suitable for use with both coarse and/or fine pitch conduit/tubing.
  • Unitary design and assembled shipment allows fast fit.
  • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease and common solvents. This feature is not assessed by UL certification or testing.
  • No threading of the conduit or tubing is required to install.
  • Locknuts NOT included.
  • Suitable for use by all original equipment manufacturers.
  • Protection class IP 66 per BS EN 60529 including high pressure water jet from any angle.
  • Vibration and tamper resistant.
  • Consult factory for FPAX fittings for use in IP 68 or 67 (as well as 66) applications.
UL Recognized Components."
Filter:
  Product Name  Color  Nominal Size [inches]  Description  Thread Size  Thread Length - A [inches]
F8606
1/2NPT-90 16MM FPA16-050-90/BL
Black  41276  FPA 16-050-90  1/2 NPT  0.512  Add to Quote

F8610
1/2NPT-90 21MM FPA21-050-90/BL
Black  41337  FPA 21-050-90  1/2 NPT  0.512  Add to Quote

F8616
3/4NPT-90 28MM FPA28-075-90/BL
Black  FPA 28-075-90  3/4 NPT  0.591  Add to Quote

F8620
1 NPT-90 34MM FPA34-100-90/BL
Black  1.25  FPA 34-100-90  1 NPT  0.63  Add to Quote

F8624
1-1/2"-90 42MM FPA42-150-90/BL
Black  1.5  FPA 42-125-90  1 1/2 NPT  0.669  Add to Quote

F8626
1-1/2"-90 54MM FPA54-150-90/BL
Black  FPA 54-150-90  1 1/2 NPT  0.669  Add to Quote

F8628
2 NPT-90 54MM FPA54-200-90/BL
Black  FPA 54-200-90  2 NPT  0.728  Add to Quote

F8607
1/2NPT-90 16MM FPA16-050-90/GY
Gray  41276  FPA 16-050-90  1/2 NPT  0.512  Add to Quote

F8611
1/2NPT-90 21MM FPA21-050-90/GY
Gray  41337  FPA 21-050-90  1/2 NPT  0.512  Add to Quote

F8617
F8617
Gray  FPA 28-075-90  3/4 NPT  0.591  Add to Quote

F8621
1 NPT-90 34MM FPA34-100-90/GY
Gray  1.25  FPA 34-100-90  1 NPT  0.63  Add to Quote

F8625
1-1/2"-90 42MM FPA42-150-90/GY
Gray  1.5  FPA 42-125-90  1 1/2 NPT  0.669  Add to Quote

F8627
1-1/2"-90 54MM FPA54-150-90/GY
Gray  FPA 54-150-90  1 1/2 NPT  0.669  Add to Quote

F8629
2 NPT-90 54MM FPA54-200-90/GY
Gray  FPA 54-200-90  2 NPT  0.728  Add to Quote

Displaying 1 to 14 (of 14 products) Result Pages:  1
