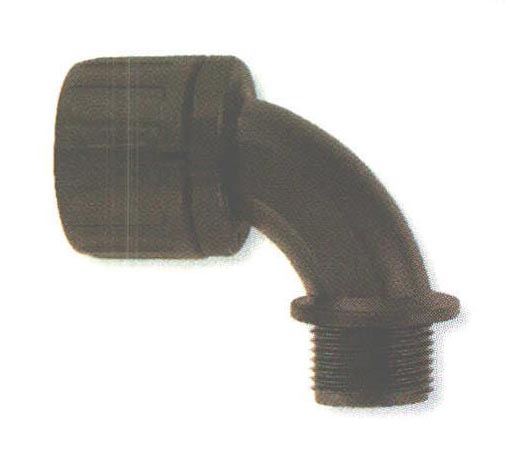

Flexicon Nylon (PA66); Sweep Metric Thread Fittings

Click the product name or part number below to request a quote.

For Flexible, Corrugated Nylon Conduit/Tubing
  • For use with 1/4 thru 2" corrugated conduit/tubing.
  • Seven metric thread sizes for use with eight conduit sizes.
  • Suitable for use with both coarse and/or fine pitch conduit/tubing.
  • Unitary design and assembly shipment allows fast fit.
  • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • No threading of the conduit or tubing is required to install.
  • Locknuts INCLUDED.
  • Suitable for use by original equipment manufacturers.
  • Protection class IP 66 per EN 60529 including high pressure water jet from an angle.
  • Vibration and tamper resistant.
  • Consult factory for FPAX fittings for use in IP 68 or 67 (as well as 66) applications.
UL Recognized Components."
Filter:
  Product Name  Color  Nominal Size [inches]  Description  Thread Size  Thread Length - A [inches]
F8670
M12-90 10MM FPA10-M12-90/BL
Black  41278  FPA 10-M12-90  M12 x 15  0.315  Add to Quote

F8672
M16-90 13MM FPA13-M16-90/BL
Black  41341  FPA 13-M16-90  M16 x 15  0.453  Add to Quote

F8674
M16-90 16MM FPA16-M16-90/BL
Black  41276  FPA 16-M16-90  M16 x 15  0.453  Add to Quote

F8676
M20-90 16MM FPA16-M20-90/BL
Black  41276  FPA 16-M20-90  M20 x 15  0.512  Add to Quote

F8680
M20-90 21MM FPA21-M20-90/BL
Black  41337  FPA 21-M20-90  M20 x 15  0.512  Add to Quote

F8686
M25-90 28MM FPA28-M25-90/BL
Black  FPA 28-M25-90  M25 x 15  0.591  Add to Quote

F8690
M32-90 34MM FPA34-M32-90/BL
Black  1.25  FPA 34-M32-90  M32 x 15  0.63  Add to Quote

F8694
M50-90 42MM FPA42-M50-90/BL
Black  1.5  FPA 42-M50-90  M50 x 15  0.63  Add to Quote

F8696
M50-90 54MM FPA54-M50-90/BL
Black  FPA 54-M50-90  M50 x 15  0.63  Add to Quote

F8698
M63-90 54MM FPA54-M63-90/BL
Black  FPA 54-M63-90  M63 x 15  0.63  Add to Quote

F8671
M12-90 10MM FPA10-M12-90/GY
Gray  41278  FPA 10-M12-90  M12 x 15  0.315  Add to Quote

F8673
M16-90 13MM FPA13-M16-90/GY
Gray  41341  FPA 13-M16-90  M16 x 15  0.453  Add to Quote

F8675
M16-90 16MM FPA16-M16-90/GY
Gray  41276  FPA 16-M16-90  M16 x 15  0.453  Add to Quote

F8677
M20-90 16MM FPA16-M20-90/GY
Gray  41276  FPA 16-M20-90  M20 x 15  0.512  Add to Quote

F8681
M20-90 21MM FPA21-M20-90/GY
Gray  41337  FPA 21-M20-90  M20 x 15  0.512  Add to Quote

F8687
M25-90 28MM FPA28-M25-90/GY
Gray  FPA 28-M25-90  M25 x 15  0.591  Add to Quote

F8691
M32-90 34MM FPA34-M32-90/GY
Gray  1.25  FPA 34-M32-90  M32 x 15  0.63  Add to Quote

F8695
M50-90 42MM FPA42-M50-90/GY
Gray  1.5  FPA 42-M50-90  M50 x 15  0.63  Add to Quote

F8697
M50-90 54MM FPA54-M50-90/GY
Gray  FPA 54-M50-90  M50 x 15  0.63  Add to Quote

F8699
M63-90 54MM FPA54-M63-90/GY
Gray  FPA 54-M63-90  M63 x 15  0.63  Add to Quote

Displaying 1 to 20 (of 20 products) Result Pages:  1
