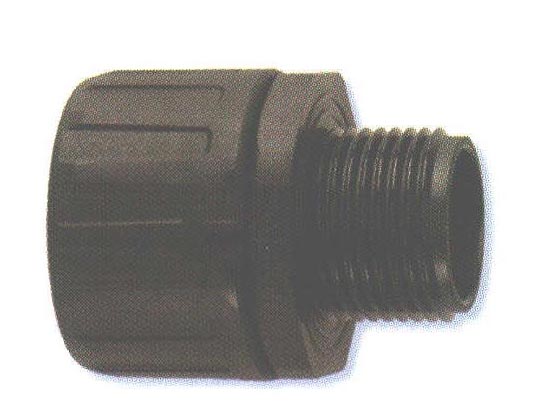

Flexicon Nylon (PA66) Straight PG Thread Fittings

Click the product name or part number below to request a quote.

For Flexible, Corrugated Nylon Conduit/Tubing
  • For use 1/4 thru 2" Flexicon corrugated conduit/tubing.
  • Nine PG threaded choices for use with eight different conduit sizes.
  • Suitable for use with both fine and/or coarse pitch conduit/tubing.
  • Unitary design and assembled shipment allows fast fit.
  • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • No threading of the conduit/tubing is required to install.
  • Locknuts NOT included.
  • Suitable for use by all original equipment manufacturers.
  • Protection class IP 66 per EN 60529 including high pressure water jet from any angle.
  • Vibration and tamper resistant, but easily removed with a screwdriver.
  • Consult factory for FPAX fittings for use in IP 68 or 67 (as well as 66) applications.
UL Recognized Components."
Filter:
  Product Name  Color  Nominal Size [inches]  Description  Thread Size  Thread Length - A [inches]
F8540
PG-7 10MM FPA10-PG7/BL
Black  1/4  FPA 10-PG7  PG 7  0.354  Add to Quote

F8542
PG-9 13MM FPA13-PG9/BL
Black  3/8  FPA 13-PG9  PG 9  0.394  Add to Quote

F8546
PG-11 16MM FPA16-PG11/BL
Black  1/2  FPA 16-PG11  PG 11  0.394  Add to Quote

F8548
PG-13 16MM FPA16-PG13/BL
Black  1/2  FPA 16-PG13  PG 13  0.394  Add to Quote

F8550
PG-13 21MM FPA21-PG13/BL
Black  3/4  FPA 21-PG13  PG 13  0.394  Add to Quote

F8552
PG-16 21MM FPA21-PG16/BL
Black  3/4  FPA 21-PG16  PG 16  0.453  Add to Quote

F8556
PG-21 28MM FPA28-PG21/BL
Black  FPA 28-PG21  PG 21  0.472  Add to Quote

F8560
PG-29 34MM FPA34-PG29/BL
Black  1 1/4  FPA 34-PG29  PG 29  0.472  Add to Quote

F8562
PG-36 42MM FPA42-PG36/BL
Black  1 1/2  FPA 42-PG36  PG 36  0.472  Add to Quote

F8566
PG-48 54MM FPA54-PG48/BL
Black  FPA 54-PG48  PG 48  0.472  Add to Quote

F8541
PG-7 10MM FPA10-PG7/GR
Gray  1/4  FPA 10-PG7  PG 7  0.354  Add to Quote

F8543
PG-9 13MM FPA13-PG9/GR
Gray  3/8  FPA 13-PG9  PG 9  0.394  Add to Quote

F8547
PG-11 16MM FPA16-PG11/GR
Gray  1/2  FPA 16-PG11  PG 11  0.394  Add to Quote

F8549
PG-13 16MM FPA16-PG13/GR
Gray  1/2  FPA 16-PG13  PG 13  0.394  Add to Quote

F8551
PG-13 21MM FPA21-PG13/GR
Gray  3/4  FPA 21-PG13  PG 13  0.394  Add to Quote

F8553
PG-16 21MM FPA21-PG16/GR
Gray  3/4  FPA 21-PG16  PG 16  0.453  Add to Quote

F8557
PG-21 28MM FPA28-PG21/GR
Gray  FPA 28-PG21  PG 21  0.472  Add to Quote

F8561
PG-29 34MM FPA34-PG29/GR
Gray  1 1/4  FPA 34-PG29  PG 29  0.472  Add to Quote

F8563
PG-36 42MM FPA42-PG36/GR
Gray  1 1/2  FPA 42-PG36  PG 36  0.472  Add to Quote

F8567
PG-48 54MM FPA54-PG48/GR
Gray  FPA 54-PG48  PG 48  0.472  Add to Quote

Displaying 1 to 20 (of 20 products) Result Pages:  1
