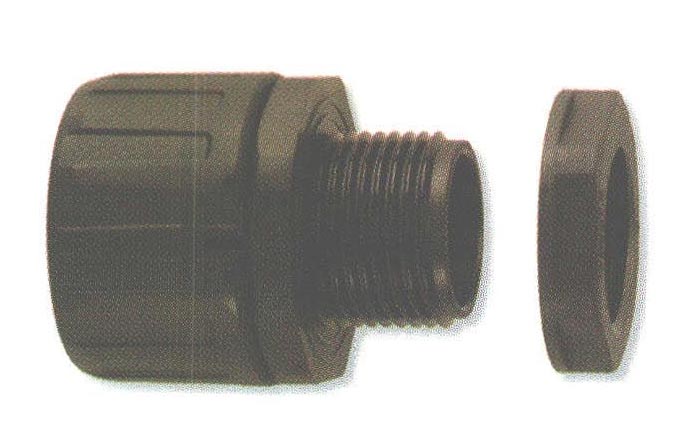

Flexicon Nylon (PA66) Straight NPT Thread Fittings

Click the product name or part number below to request a quote.

For Flexible, Corrugated Nylon Conduit/Tubing

  • For use with 1/2 thru 2" Flexicon corrugated conduit/tubing.
  • Seven NPT threaded choices for use with seven different conduit sizes.
  • Suitable for use with both fine and/or coarse pitch conduit/tubing.
  • Unitary design and assembled shipment allows fast fit.
  • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • No threading of the conduit/tubing is required to install.
  • Locknuts NOT included, refer to page 0-26 for Nylon Locknuts.
  • Suitable for use by all original equipment manufacturers.
  • Protection class IP 66 per BS EN 60529 including high pressure water jet from any angle.
  • Vibration and tamper resistant.
  • Consult factory for FPAX fittings for use in IP applications.

UL Recognized Components.

Filter:
  Product Name  Color  Nominal Size [inches]  Description  Thread Size  Thread Length - A [inches]
F8504
3/8 NPT 16MM FPA16-038/BL
Black  1/2  FPA 16-038  3/8 NPT  0.433  Add to Quote

F8506
1/2 NPT 16MM FPA16-050/BL
Black  1/2  FPA 16-050  1/2 NPT  0.551  Add to Quote

F8510
1/2 NPT 21MM FPA21-050/BL
Black  3/4  FPA 21-050  1/2 NPT  0.551  Add to Quote

F8516
3/4 NPT 28MM FPA28-075/BL
Black  FPA 28-075  3/4 NPT  0.591  Add to Quote

F8520
1 NPT 34MM FPA34-100/BL
Black  1 1/4  FPA 34-100  1 NPT  0.63  Add to Quote

F8522
1-1/4 NPT 42MM FPA42-125/BL
Black  1 1/2  FPA 42-125  1 1/4 NPT  0.63  Add to Quote

F8524
1-1/2 NPT 42MM FPA42-150/BL
Black  1 1/2  FPA 42-150  1 1/2 NPT  0.709  Add to Quote

F8526
1-1/2 NPT 54MM FPA54-150/BL
Black  FPA 54-150  1 1/2 NPT  0.709  Add to Quote

F8528
2 NPT 54MM FPA54-200/BL
Black  FPA 54-200  2 NPT  0.787  Add to Quote

F8505
3/8 NPT 16MM FPA16-038/GR
Gray  1/2  FPA 16-038  3/8 NPT  0.433  Add to Quote

F8507
1/2 NPT 16MM FPA16-050/GR
Gray  1/2  FPA 16-050  1/2 NPT  0.551  Add to Quote

F8511
1/2 NPT 21MM FPA21-050/GY
Gray  3/4  FPA 21-050  1/2 NPT  0.551  Add to Quote

F8517
3/4 NPT 28MM FPA28-075/GR
Gray  FPA 28-075  3/4 NPT  0.591  Add to Quote

F8521
1 NPT 34MM FPA34-100/GR
Gray  1 1/4  FPA 34-100  1 NPT  0.63  Add to Quote

F8523
1-1/4 NPT 42MM FPA42-125/GR
Gray  1 1/2  FPA 42-125  1 1/4 NPT  0.63  Add to Quote

F8525
1-1/2 NPT 42MM FPA42-150/GR
Gray  1 1/2  FPA 42-150  1 1/2 NPT  0.709  Add to Quote

F8527
1-1/2 NPT 54MM FPA54-150/GR
Gray  FPA 54-150  1 1/2 NPT  0.709  Add to Quote

F8529
2 NPT 54MM FPA54-200/GR
Gray  FPA 54-200  2 NPT  0.787  Add to Quote

Displaying 1 to 18 (of 18 products) Result Pages:  1
