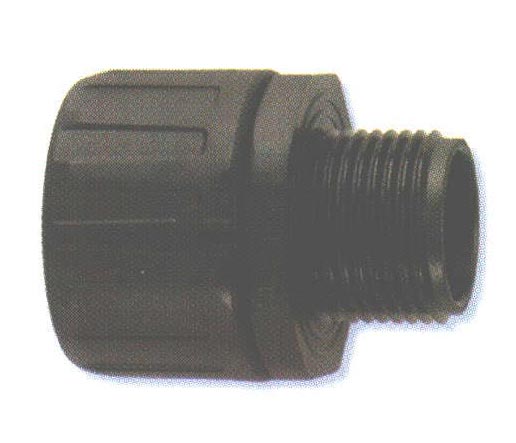

Flexicon Nylon (PA66) Straight Metric Thread Fittings

Click the product name or part number below to request a quote.

For Flexible, Corrugated Nylon Conduit/Tubing

  • For use with 1/4 thru 2" Flexicon corrugated conduit/tubing.
  • Eight metric thread sizes for use with nine conduit sizes.
  • Suitable for use with both coarse and/or fine pitch conduit/tubing.
  • Unitary design and assembled shipment allows fast fit.
  • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • No threading of the conduit or tubing is required to install.
  • Locknuts INCLUDED.
  • Suitable for use by original equipment manufacturers.
  • Protection class IP 66 per EN 60529 including high pressure water jet from any angle.
  • Vibration and tamper resistant, but easily removed with a screwdriver.
  • Refer to page 0-11 for metric thread specification.
  • Consult factory for FPAX fittings for use in IP 68 or 67 (as well as 66) applications.

UL Recognized Components.

Filter:
  Product Name  Color  Nominal Size [inches]  Description  Thread Size  Thread Length - A [inches]
F8570
M12 10MM FPA10-M12/BL
Black  1/4  FPA 10-M12  M12 x 15  0.354  Add to Quote

F8572
M16 13MM FPA13-M16/BL
Black  3/8  FPA 13-M16  M16 x 15  0.453  Add to Quote

F8574
M16 16MM FPA16-M16/BL
Black  1/2  FPA 16-M16  M16 x 15  0.453  Add to Quote

F8576
M20 16MM FPA16-M20/BL
Black  1/2  FPA 16-M20  M20 x 15  0.551  Add to Quote

F8580
M20 21MM FPA21-M20/BL
Black  3/4  FPA 21-M20  M20 x 15  0.551  Add to Quote

F8586
M25 28MM FPA28-M25/BL
Black  FPA 28-M25  M25 x 15  0.591  Add to Quote

F8590
M32 34MM FPA34-M32/BL
Black  1 1/4  FPA 34-M32  M32 x 15  0.63  Add to Quote

F8592
M40 42MM FPA42-M40/BL
Black  1 1/2  FPA 42-M40  M40 x 15  0.63  Add to Quote

F8594
M50 42MM FPA42-M50/BL
Black  1 1/2  FPA 42-M50  M50 x 15  0.63  Add to Quote

F8596
M50 54MM FPA54-M50/BL
Black  FPA 54-M50  M50 x 15  0.63  Add to Quote

F8598
M63 54MM FPA54-M63/BL
Black  FPA 54-M63  M63 x 15  0.63  Add to Quote

F8571
M12 10MM FPA10-M12/GR
Gray  1/4  FPA 10-M12  M12 x 15  0.354  Add to Quote

F8573
M16 13MM FPA13-M16/GR
Gray  3/8  FPA 13-M16  M16 x 15  0.453  Add to Quote

F8575
M16 16MM FPA16-M16/GR
Gray  1/2  FPA 16-M16  M16 x 15  0.453  Add to Quote

F8577
M20 16MM FPA16-M20/GR
Gray  1/2  FPA 16-M20  M20 x 15  0.551  Add to Quote

F8581
M20 21MM FPA21-M20/GR
Gray  3/4  FPA 21-M20  M20 x 15  0.551  Add to Quote

F8587
M25 28MM FPA28-M25/GR
Gray  FPA 28-M25  M25 x 15  0.591  Add to Quote

F8591
M32 34MM FPA34-M32/GR
Gray  1 1/4  FPA 34-M32  M32 x 15  0.63  Add to Quote

F8593
M40 42MM FPA42-M40/GR
Gray  1 1/2  FPA 42-M40  M40 x 15  0.63  Add to Quote

F8595
M50 42MM FPA42-M50/GR
Gray  1 1/2  FPA 42-M50  M50 x 15  0.63  Add to Quote

Displaying 1 to 20 (of 22 products) Result Pages:  1  2  [Next >>]
