Home » Liquid Tight Flexible Conduit & Fittings » Flexicon Nylon Tubing » Flexicon Conduit/Tubing Mounting Clips

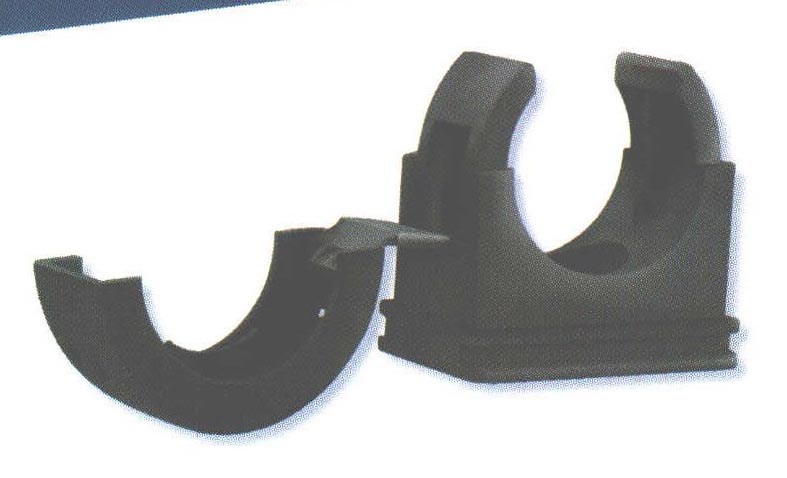

Flexicon Conduit/Tubing Mounting Clips

Click the product name or part number below to request a quote.

With Integral Closure

  • For use with 1/4 thru 3/8" Flexicon corrugated conduit/tubing,
  • Suitable for use with both fine and/or coarse pitch conduit/tubing.
  • For mounting Flexicon corrugated conduit or tubing securely into place, vertically or horizontally.
  • Only fingertip pressure is required to snap conduit or tubing into bracket.
  • Suitable for use by original equipment manufacturers.
  • Low profile design for space savings and pleasing appearance.
  • Recommended distance between brackets at intervals not greater than 3 feet (914 mm) as required by Article 351-27 of 1996 NEC.
  • Use one standard #10 (4-5M) screw for attaching bracket to panel or chassis (screw not included).
  • Resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Can be easily opened for temporary access/removal and closed again to secure conduit.

UL Recognized Components.

Filter:
  Product Name  Color  Nominal Size [inches]  Description  Mounting Hole - A [inches]  Mounting Hole - A [mm]
F8900
CONDUIT CLIP 10MM FCL10/BL
Black  1/4  FCL 10  0.197  Add to Quote

F8902
CONDUIT CLIP 13MM FCL13/BL
Black  3/8  FCL 13  0.197  Add to Quote

F8904
CONDUIT CLIP 16MM FCL16/BL
Black  1/2  FCL 16  0.205  5.2  Add to Quote

F8906
CONDUIT CLIP 21MM FCL21/BL
Black  3/4  FCL 21  0.244  6.2  Add to Quote

F8908
CONDUIT CLIP 28MM FCL28/BL
Black  FCL 28  0.244  6.2  Add to Quote

F8910
CONDUIT CLIP 34MM FCL34/BL
Black  1 1/4  FCL 34  0.244  6.2  Add to Quote

F8912
CONDUIT CLIP 42MM FCL42/BL
Black  1 1/2  FCL 42  0.244  6.2  Add to Quote

F8914
CONDUIT CLIP 54MM FCL54/BL
Black  FCL 54  0.244  6.2  Add to Quote

F8901
CONDUIT CLIP 10MM FCL10/GY
Gray  1/4  FCL 10  0.197  Add to Quote

F8903
CONDUIT CLIP 13MM FCL13/GY
Gray  3/8  FCL 13  0.197  Add to Quote

F8905
CONDUIT CLIP 16MM FCL16/GY
Gray  1/2  FCL 16  0.205  5.2  Add to Quote

F8907
CONDUIT CLIP 21MM FCL21/GY
Gray  3/4  FCL 21  0.244  6.2  Add to Quote

F8909
CONDUIT CLIP 28MM FCL28/GY
Gray  FCL 28  0.244  6.2  Add to Quote

F8911
CONDUIT CLIP 34MM FCL34/GY
Gray  1 1/4  FCL 34  0.244  6.2  Add to Quote

F8913
CONDUIT CLIP 42MM FCL42/GY
Gray  1 1/2  FCL 42  0.244  6.2  Add to Quote

F8915
CONDUIT CLIP 54MM FCL54/GY
Gray  FCL 54  0.244  6.2  Add to Quote

Displaying 1 to 16 (of 16 products) Result Pages:  1
