Home » Liquid Tight Flexible Conduit & Fittings » Flexicon Corrugated Tubing » Flexicon Corrugated Conduit/Tubing - Type FPAS

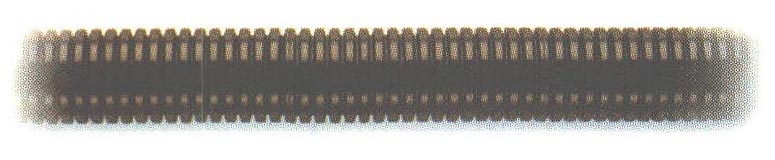

Flexicon Corrugated Conduit/Tubing - Type FPAS

Click the product name or part number below to request a quote.

Highly Flexible Polyamide 6 Nylon", Medium Weight
  • 1/4" thru 2" nominal sizes.
  • Use with nylon Flexicon fittings;
  • Straight, 90° or 45°.
  • Highly resistant to abrasion, oil, and solvents.
  • Temperature range : -40°C to 120°C static (-40°F to 248°F) -20°C to 100°C moving (-4°F to 212°F)
  • Highly flexible and high fatigue life.
  • High impact strength and recovers if crushed.
  • Lightweight and low installed cost.
  • UV resistant (black).
  • For use with all types of equipment, machinery, pumps, motors, and HVAC Equipment.
  • IP RATING : IP 66 w/FPA Fittings IP 68 w/FPAX Fittings IP Rating Tested To EN60529
  • Halogen free.
  • Highly flame retardant.
  • Consult factory for light and/or heavy weight nylon 6 corrugated conduit.
  • Consult factory for Type FPR Extra Low Fire Hazard (V0) Nylon 6 corrugated conduit.
  • Consult factory for availability of gray or other colors as well as nonstandard lengths.
Filter:
  Product Name  Color  Nominal Size [inches]  Pitch  Description  Inside Bend Radius [inches]
F8400
10MM PA6 50M COIL FPAS10/BL
Black  1/4  FPAS 10/BL  0.591  Add to Quote

F8402
13MM PA6 50M COIL FPAS13/BL
Black  3/8  FPAS 13/BL  0.984  Add to Quote

F8404
16MM PA6 50M COIL FPAS16/BL
Black  1/2  FPAS 16/BL  1.575  Add to Quote

F8406
21MM PA6 50M COIL FPAS21/BL
Black  3/4  FPAS 21/BL  1.722  Add to Quote

F8410
28MM PA6 50M COIL FPAS28/BL
Black  FPAS 28/BL  1.969  Add to Quote

F8414
34MM PA6 50M COIL FPAS34/BL
Black  1 1/4  FPAS 34/BL  2.362  Add to Quote

F8416
42MM PA6 25M COIL FPAS42/BL
Black  1 1/2  FPAS 42/BL  2.756  Add to Quote

F8418
54MM PA6 25M COIL FPAS54/BL
Black  FPAS 54/BL  3.15  Add to Quote

F8401
10MM PA6 50M COIL FPAS10/GR
Gray  1/4  FPAS 10/BL  0.591  Add to Quote

F8403
13MM PA6 50M COIL FPAS13/GR
Gray  3/8  FPAS 13/BL  0.984  Add to Quote

F8405
16MM PA6 50M COIL FPAS16/GR
Gray  1/2  FPAS 16/BL  1.575  Add to Quote

F8407
21MM PA6 50M COIL FPAS21/GR
Gray  3/4  FPAS 21/BL  1.722  Add to Quote

F8411
28MM PA6 50M COIL FPAS28/GR
Gray  FPAS 28/BL  1.969  Add to Quote

F8415
34MM PA6 50M COIL FPAS34/GR
Gray  1 1/4  FPAS 34/BL  2.362  Add to Quote

F8417
42MM PA6 25M COIL FPAS42/GR
Gray  1 1/2  FPAS 42/BL  2.756  Add to Quote

F8419
54MM PA6 25M COIL FPAS54/GR
Gray  FPAS 54/BL  3.15  Add to Quote

Displaying 1 to 16 (of 16 products) Result Pages:  1
