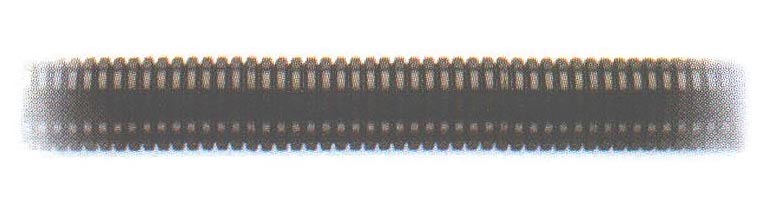

Flexicon Corrugated Conduit/Tubing - Type FPI

Click the product name or part number below to request a quote.

Extremely Flexible Polyamide 12 Nylon, Medium Weight
  • 3/8 thru 2" nominal sizes.
  • Medium wall construction.
  • Use with nylon Flexicon fittings; Straight, 90°, or 45°.
  • Highly resistant to abrasion, oil, and solvents.
  • Temperature range : -50°C to 110°C (-58°F to 230°F)
  • Highly flexible and exceptional fatigue life.
  • High impact strength and recovers if crushed.
  • UV resistant (black).
  • Particularly suited to Robotics, Automation, and/or continuous flexing.
  • IP RATING : IP 66 w/FPA Fittings IP 66, 67, 68 w/FPAX Fittings IP Rating Tested To EN60529
  • Halogen, sulphur, and phosphorus free.
  • Highly Flame Retardant.
  • Low smoke and toxicity.
  • Consult factory for heavy weight nylon 12 corrugated conduit.
  • Consult factory for Type FPR Extra Low Fire Hazard (V0) Nylon 6 corrugated conduit.
  • Consult factory for availability of gray or other colors as well as nonstandard lengths.
Filter:
  Product Name  Color  Nominal Size [inches]  Pitch  Description  Inside Bend Radius [inches]
F8422
13MM PA12 50M COIL FPI13/BL
Black  41341  FPI 13/BL  0.984  Add to Quote

F8424
16MM PA12 50M COIL FPI16/BL
Black  41276  FPI 16/BL  1.181  Add to Quote

F8426
21MM PA12 50M COIL FPI21/BL
Black  41337  FPI 21/BL  1.378  Add to Quote

F8432
28MM PA12 50M COIL FPI28/BL
Black  FPI 28/BL  1.772  Add to Quote

F8434
34MM PA12 25M COIL FPI34/BL
Black  1.25  FPI 34/BL  2.165  Add to Quote

F8436
42MM PA12 25M COIL FPI42/BL
Black  1.5  FPI 42/BL  2.362  Add to Quote

F8438
54MM PA12 25M COIL FPI54/BL
Black  FPI 54/BL  2.756  Add to Quote

F8423
13MM PA12 50M COIL FPI13/GR
Gray  41341  FPI 13/BL  0.984  Add to Quote

F8425
16MM PA12 50M COIL FPI16/GR
Gray  41276  FPI 16/BL  1.181  Add to Quote

F8427
21MM PA12 50M COIL FPI21/GR
Gray  41337  FPI 21/BL  1.378  Add to Quote

F8433
28MM PA12 50M COIL FPI28/GR
Gray  FPI 28/BL  1.772  Add to Quote

F8435
34MM PA12 25M COIL FPI34/GR
Gray  1.25  FPI 34/BL  2.165  Add to Quote

F8437
42MM PA12 25M COIL FPI42/GR
Gray  1.5  FPI 42/BL  2.362  Add to Quote

F8439
54MM PA12 25M COIL FPI54/GR
Gray  FPI 54/BL  2.756  Add to Quote

Displaying 1 to 14 (of 14 products) Result Pages:  1
