Regular Flat-Type Washers

Click the product name or part number below to request a quote.

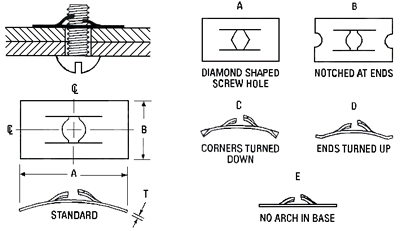

The Flat-Type Speed Nut is the basic design from which thousands of Speed Nut Brand Fasteners have been developed.

Flat-Type Speed Nut Fasteners are one-piece, self-locking, heat-treated, spring-steel fasteners that replace threaded nuts, lockwashers and spanner washers. On many applications, they eliminate time consuming assembly operations. Fast and easy to apply, Speed Nut Fasteners provide maximum holding power at minimum cost per fastener. They never shake loose from vibration, yet can be easily loosened when desired, without worry about rust-frozen screw threads.
Filter:
  Product Name  Screw Size  Design Variation  Length (A)  Width (B)  Material Thickness (T)
Tinnerman® Flat-Type Fasteners Rectangular
C102-256
Tinnerman® Flat-Type Fasteners Rectangular
20486  Std.  0.38  0.22  0.01  Add to Quote

Tinnerman® Flat-Type Fasteners Rectangular
C7000-4
Tinnerman® Flat-Type Fasteners Rectangular
4A or 4B  Std.  0.38  0.25  0.022  Add to Quote

Tinnerman® Flat-Type Fasteners Rectangular
C1181-632
Tinnerman® Flat-Type Fasteners Rectangular
11841  0.51  0.31  0.017  Add to Quote

Tinnerman® Flat-Type Fasteners Rectangular
C8000-6
Tinnerman® Flat-Type Fasteners Rectangular
6A or 6B  Std.  0.87  0.44  0.025  Add to Quote

Tinnerman® Flat-Type Fasteners Rectangular
C7000-832
Tinnerman® Flat-Type Fasteners Rectangular
11902  Std.  0.5  0.31  0.017  Add to Quote

Tinnerman® Flat-Type Fasteners Rectangular
C8002-8
Tinnerman® Flat-Type Fasteners Rectangular
8A or 8B  Std.  0.87  0.47  0.028  Add to Quote

Tinnerman® Flat-Type Fasteners Rectangular
C1150-1024
Tinnerman® Flat-Type Fasteners Rectangular
41571  0.73  0.44  0.022  Add to Quote

Tinnerman® Flat-Type Fasteners Rectangular
C7000-10
Tinnerman® Flat-Type Fasteners Rectangular
10A or 10B  Std.  0.75  0.5  0.031  Add to Quote

Tinnerman® Flat-Type Fasteners Rectangular
C8613-020
Tinnerman® Flat-Type Fasteners Rectangular
43834  0.56  0.02  Add to Quote

Tinnerman® Flat-Type Fasteners Rectangular
C7000-14
Tinnerman® Flat-Type Fasteners Rectangular
14A or 14B  Std.  0.88  0.56  0.037  Add to Quote

Tinnerman® Flat-Type Fasteners Rectangular
C601-5618
Tinnerman® Flat-Type Fasteners Rectangular
43236  Std.  0.98  0.63  0.028  Add to Quote

Tinnerman® Flat-Type Fasteners Rectangular
C1297-3816
Tinnerman® Flat-Type Fasteners Rectangular
42437  0.75  0.034  Add to Quote

Tinnerman® Flat-Type Fasteners Rectangular
D7516-017*
Tinnerman® Flat-Type Fasteners Rectangular
41276  1.22  0.88  0.017  Add to Quote

Displaying 1 to 13 (of 13 products) Result Pages:  1
