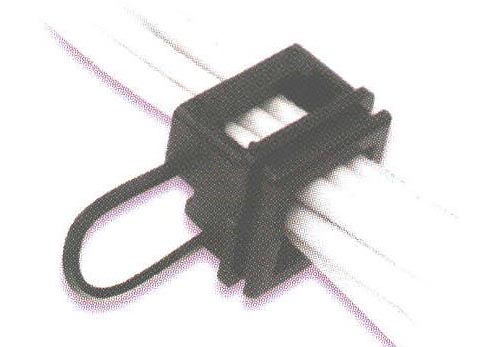

Lay-In Strain Relief Bushing

Click the product name or part number below to request a quote.

For Split Panel Mounting Holes
US Patent No. 5243139
  • Assembly friendly. Independent of insertion into the panel, Lay-In Strain Reliefs self-lock onto the cable. Thus, they may be preassembled offline for final assembly at a later time or remote location, for lower installed cost.
  • Designed to be installed in split panel mounting hole or dropped into a slot.
  • Unique wire locking ratchet allows for generous wire range from 0.250 (6.4 mm) to 0.600 (15.2 mm).
  • Protects against forces of pull, push, or twist.
  • Can be used for one cable or bundles of cables (round or flat wire).
Filter:
  Product Name  Color  Description  Mounting Chassis Size [inches]  Mounting Chassis Size [mm]  Thickness [inches]
1266
SR 8R-200 BLACK
Black  SR 8R-200  0.875 x 0.875  22.2 x 22.2  0.1  Add to Quote

1267
SR 8R-200 WHITE
White  SR 8R-200  0.875 x 0.875  22.2 x 22.2  0.1  Add to Quote

Displaying 1 to 2 (of 2 products) Result Pages:  1
