Home » Strain Relief Bushings » Bushings » Straight-Thru Strain Relief Bushings for Size SR7 - SR9

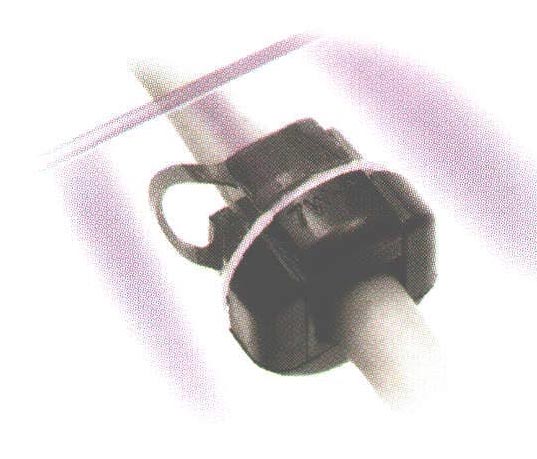

Straight-Thru Strain Relief Bushings for Size SR7 - SR9

Click the product name or part number below to request a quote.

  • Protects the lifeline of your electric/electronic products by absorbing the forces of pull, push, and twist that may be exerted on the flexible power cord.
  • Securely anchors, insulates, and protects cables at panel entry points.
  • Sizes SR7 to SR9 for mounting hole diameters from .750 in to 1.187 in.
  • Standardized design! Fill unneeded SR mounting holes with Heyco Double D Holes.
  • Sizes for narrow .062 (1.6 mm)
    Panel available :
    SR 7N-2
    SR 8N-2
Filter:
  Product Name  Color  Description  Mounting Hole Dia. - A [inches]  Mounting Hole Dia. - A [mm]  Dimension B [inches]
1240
SR 7K-2 BLACK
Black  SR 7K-2  0.875  22.2  0.77  Add to Quote

1271
SR 7KR-2 BLACK
Black  SR 7KR-2  0.875  22.2  0.77  Add to Quote

1244
SR 7N-2 BLACK
Black  SR 7N-2  0.750 - 0.781|0.750  19.0|19.0 - 19.8  0.66  Add to Quote

1237
SR 7P-2 BLACK
Black  SR 7P-2  0.750|0.750 - 0.781  19.0 - 19.8|19.0  0.66  Add to Quote

1247
SR 7W-2 BLACK
Black  SR7W-2  0.875  22.2  0.77  Add to Quote

1250
SR 7L-2 BLACK
Black  SR 7L-2  0.875  22.2  0.77  Add to Quote

1497
SR 31-2 BLACK
Black  SR 31-2  0.875  22.2  0.84  Add to Quote

1254
SR 8N-2 BLACK
Black  SR 8N-2  0.875  22.2  0.84  Add to Quote

1260
SR 8P-2 BLACK
Black  SR 8P-2  0.875  22.2  0.84  Add to Quote

1274
SR 8L-1 BLACK
Black  SR 8L-1  0.875  22.2  0.84  Add to Quote

1287
SR 9P-2 BLACK
Black  SR 9P-2  1.125|1.093  27.7|28.6  Add to Quote

1241
SR 7K-2 WHITE
White  SR 7K-2  0.875  22.2  0.77  Add to Quote

1272
SR 7KR-2 WHITE
White  SR 7KR-2  0.875  22.2  0.77  Add to Quote

1245
SR 7N-2 WHITE
White  SR 7N-2  0.750 - 0.781|0.750  19.0 - 19.8|19.0  0.66  Add to Quote

1238
SR 7P-2 WHITE
White  SR 7P-2  0.750|0.750 - 0.781  19.0|19.0 - 19.8  0.66  Add to Quote

1248
SR 7W-2 WHITE
White  SR7W-2  0.875  22.2  0.77  Add to Quote

1251
SR 7L-2 WHITE
White  SR 7L-2  0.875  22.2  0.77  Add to Quote

1498
SR 31-2 WHITE
White  SR 31-2  0.875  22.2  0.84  Add to Quote

1255
SR 8N-2 WHITE
White  SR 8N-2  0.875  22.2  0.84  Add to Quote

1261
SR 8P-2 WHITE
White  SR 8P-2  0.875  22.2  0.84  Add to Quote

Displaying 1 to 20 (of 22 products) Result Pages:  1  2  [Next >>]
