Home » Strain Relief Bushings » Bushings » Straight-Thru Strain Relief Bushings Flex Protecting


Straight-Thru Strain Relief Bushings Flex Protecting

Click the product name or part number below to request a quote.

Straight-Thru Strain Relief Bushings Flex Protecting

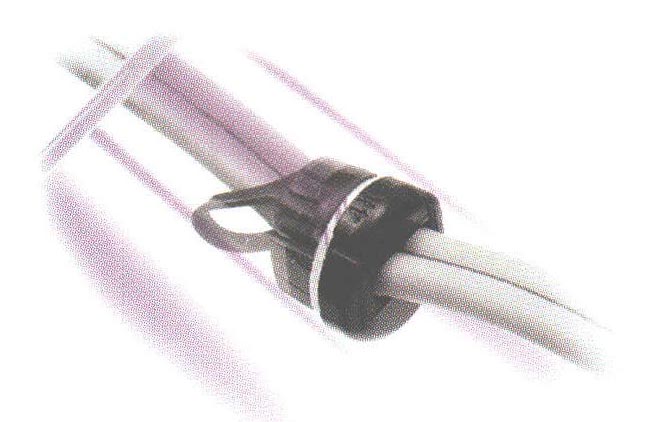

Click to enlarge
For Flat Cables, With Flex-Protecting Internal Radii
  • Protects the lifeline of your electric/ electronic products by absorbing the forces of pull, push, and twist that may be exerted on the flexible power cord.
  • Securely anchors, insulates, and protects cable at panel entry points.
  • Sizes for narrow .040” (1.0 mm) panel available : SR 3A-4, SR 4A-6. See charts for details.
  • Standardize panel design. Fill unused SR mounting holes with Heyco Double “D” Plugs.
  • For assembly tools and SR hole punches.
Filter:
  Product Name  Color  Description  Mounting Hole Dia. - A [inches]  Mounting Hole Dia. - A [mm]  Dimension B [inches]
1181
 SR 4A-6 BLACK
 Black  SR 4A-6  0.5  12.7  0.465  Add to Quote
1187
 SR 4N-6 BLACK
 Black  SR 4N-6  0.5  12.7  0.465  Add to Quote
1190
 SR 4K-6 BLACK
 Black  SR 4K-6  0.5  12.7  0.465  Add to Quote
1182
 SR 4A-6 WHITE
 White  SR 4K-6  0.5  12.7  0.465  Add to Quote
1188
 SR 4N-6 WHITE
 White  SR 4K-6  0.5  12.7  0.465  Add to Quote
1191
 SR 4K-6 WHITE
 White  SR 4K-6  0.5  12.7  0.465  Add to Quote
1017
 SR 2P-4 BLACK
 Black  SR 2P-4  0.375  9.5  0.345  Add to Quote
1034
 SR 2L-1 BLACK
 Black  SR 2L-1  0.375  9.5  0.345  Add to Quote
1074
 SR 3A-4 BLACK
 Black  SR 3A-4  0.437  11.1  0.39  Add to Quote
1077
 SR 3P-4 BLACK
 Black  SR 3P-4  0.437  11.1  0.39  Add to Quote
1104
 SR 3W-1 BLACK
 Black  SR 3W-1  0.437  11.1  0.39  Add to Quote
1094
 SR 3L-1 BLACK
 Black  SR 3L-1  0.437  11.1  0.39  Add to Quote
1130
 SR 4P-4 BLACK
 Black  SR 4P-4  0.5  12.7  0.445  Add to Quote
1120
 SR 4N-4 BLACK
 Black  SR 4N-4  0.5  12.7  0.465  Add to Quote
1117
 SR 4K-4 BLACK
 Black  SR 4K-4  0.5  12.7  0.465  Add to Quote
1127
 SR 4L-4 BLACK
 Black  SR 4L-4  0.5  12.7  0.465  Add to Quote
1114
 SR 4K-1 BLACK
 Black  SR 4K-1  0.500|0.500 - 0.515  12.7|12.7 - 13.1  0.46  Add to Quote
1124
 SR 4L-1 BLACK
 Black  SR 4L-1  0.500|0.500 - 0.515  12.7|12.7 - 13.1  0.46  Add to Quote
1170
 SR 5KN-4 BLACK
 Black  SR 5KN-4  0.562  14.3  0.53  Add to Quote
1167
 SR 5K-4 BLACK
 Black  SR 5K-4  0.562  14.3  0.53  Add to Quote
Displaying 1 to 20 (of 38 products) Result Pages:  1  2  [Next >>]
