Home » Strain Relief Bushings » Bushings » Right Angle Strain Relief Bushings for Flat Cables

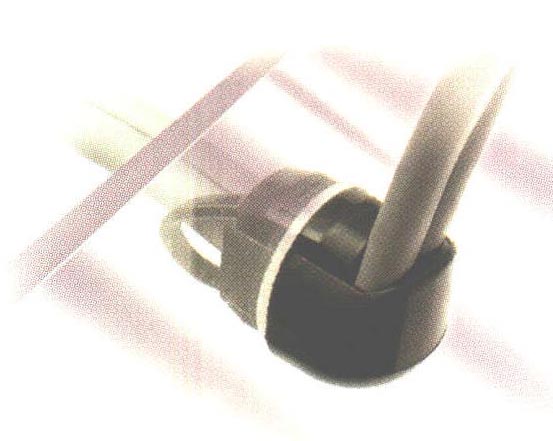

Right Angle Strain Relief Bushings for Flat Cables

Click the product name or part number below to request a quote.

  • Provides the same protection for your power supply cable as the straight-thru type
  • Exits the cable flush against the chassis, saving space and directing the cable parallel to the panel.
  • Overcomes space limitations and acts as a back or bottom bumper.
  • Standardize panel design. Fill unused SR mounting holes with Heyco Double D" Plugs.
Filter:
  Product Name  Color  Description  Mounting Hole Dia. - A [inches]  Mounting Hole Dia. - A [mm]  Dimension B [inches]
1354
SR 13-1 BLACK
Black  SR 13-1  0.437  11.1  0.39  Add to Quote

1361
SR 14A-1 BLACK
Black  SR 14A-1  0.5  12.7  0.45  Add to Quote

1364
SR 14-1 BLACK
Black  SR 14-1  0.5  12.7  0.45  Add to Quote

1384
SR 16-1 BLACK
Black  SR 16-1  0.562  14.3  0.525  Add to Quote

1424
SR 20-1 BLACK
Black  SR 20-1  0.56  14.2  0.73  Add to Quote

1434
SR 20L-1 BLACK
Black  SR 20L-1  0.56  14.2  0.73  Add to Quote

1454
SR 23-1 BLACK
Black  SR 23-1  0.56  14.2  0.73  Add to Quote

1464
SR 24-1 BLACK
Black  SR 24-1  0.75  19  0.875  Add to Quote

1440
SR 21-2 BLACK
Black  SR 21-2  1.093  28  Add to Quote

1355
SR 13-1 WHITE
White  SR 13-1  0.437  11.1  0.39  Add to Quote

1362
SR 14A-1 WHITE
White  SR 14A-1  0.5  12.7  0.45  Add to Quote

1365
SR 14-1 WHITE
White  SR 14-1  0.5  12.7  0.45  Add to Quote

1385
SR 16-1 WHITE
White  SR 16-1  0.562  14.3  0.525  Add to Quote

1425
SR 20-1 WHITE
White  SR 20-1  0.56  14.2  0.73  Add to Quote

1435
SR 20L-1 WHITE
White  SR 20L-1  0.56  14.2  0.73  Add to Quote

1455
SR 23-1 WHITE
White  SR 23-1  0.56  14.2  0.73  Add to Quote

1465
SR 24-1 WHITE
White  SR 24-1  0.75  19  0.875  Add to Quote

1441
SR 21-2 WHITE
White  SR 21-2  1.093  28  Add to Quote

Displaying 1 to 18 (of 18 products) Result Pages:  1
